Cost Efficient Three Dimensional Electronic Compass - China

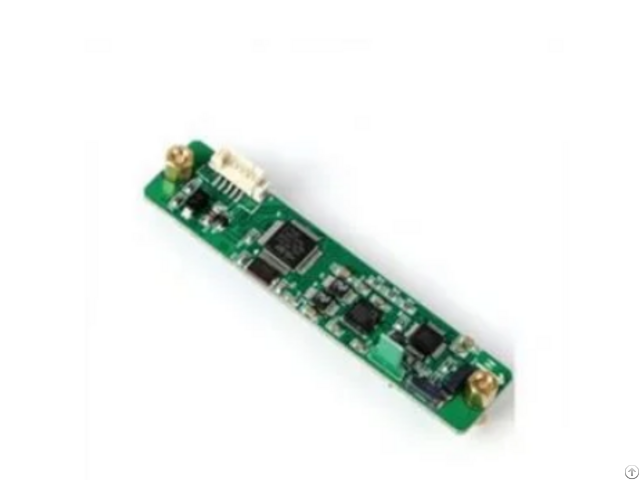

The ER-EC-360A is a high precision full attitude 3D electronic compass that uses hard and soft iron calibration algorithms to provide high precision course information in 360° roll and +/-90° full dip range.

It has the characteristics of small volume and low power consumption and is more suitable for the measurement system with power consumption and volume sensitivity.

The precise attitude of the product output carrier can be used in the system of full attitude rotation.

This product has hard magnetic, soft magnetic and tilt compensation, compass output after calibration of high precision measurement.

The patented triaxial fluxgate, which uses the CPU to calculate the course in real time and the triaxial accelerometer to compensate for the course angle, provides accurate course data even in extremely harsh environments.

With the characteristics of small size and low power consumption, it is widely used in many fields such as petroleum logging, antenna pointing, vehicle navigation, attitude system and so on.

Features

Measurement range 0~360° full attitude

Heading accuracy 0.3~0.5°, resolution 0.1°

Output frequency 5~100HZ optional

Input voltage DC 5V

Wide temperature working -40~+85℃

With hard magnetic, soft magnetic and tilt compensation

The baud rate is adjustable from 2400~115200

Working current: 40mA

IP67 protection level

Output RS232/RS485/TTL/MODBUS/CA N (optional)

Small volume (72*16*12mm) (customizable) Applications

Individual combat equipment

Satellite solar antenna positioning etc
