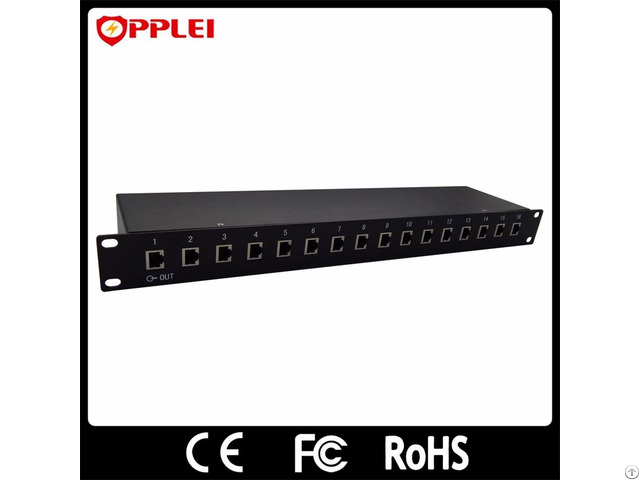

Cat6 Gigabit Network 16 Channels Surge Protector - China

FEATURES:

●Multi.

Protection circuits, Gas-Tube+ TVS technology

●Dual protection in Common module and different module

●TVS array technology, low capacitance

●Multi-Strike Capability

TECHNICAL PARAMETER ：

Model SNH-RJ45/16

Electrical Parameter

Max.

continuous operating voltage Uc 6V

Nominal discharge current(8/20µs)In 2.5kA

Max.

discharge current (8/20µs)Imax 5kA

Limiting voltage (10/700µs) Up

Line-line 25V

Line-ground 500V

Adapt transmission rate 1000Mbps

Insertion loss Ae 0.5dB

Protection line 1-8

Response time Ta 1ns

Interface form 16channels RJ45

Mechanical characteristics

Dimension 44×106×482mm

Weight per unit 2130g

IP Code IP20

Working conditions Temperature: -40 to 80℃, Relative humidity: ≤95％

Standards Compliance CE, FCC, RoHS, ISO9001

INSTALLATION AND MAINTENANCE:

a) The SPD should be connected in series between the protected device and the signal/power transmission channel.

b) The input terminal (IN) of the SPD should connect to the signal/power transmission channel, and the output

terminal (OUT) of the SPD should connect to the protected device.

c) Connect earthing wire of the SPD to earthing bus-bar of the lightning protection system of the room or building.

No special duty needs to be carried out for maintenance.

When problem arises and the SPD is suspected, check the

system with SPD taken out of circuit.

Should system recover, the SPD shall be regarded as a damaged unit and

must be replaced immediately.

OEM/ODM can be provided.

All products enjoy from 3 year to life-time free replacement warranty.
