Bw160 Hydraulic Triplex Plunger Drill Rig Mud Pump - China
price: 1000.00 Dollar US$
china coal0001

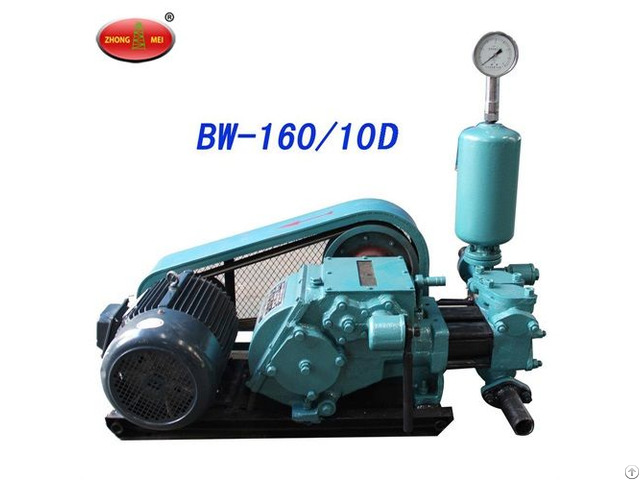

BW160 Hydraulic Triplex Plunger Drill Rig Mud Pump Introduction of BW160 Hydraulic Triplex Plunger Drill Rig Mud Pump
BW160 Hydraulic Triplex Plunger Drill Rig Mud Pump is a horizontal single-cylinder double-acting reciprocating piston pump, the pump head is equipped with four 40mm steel ball valve, thereby increasing the pressure.
It is mainly used to provide flushing solution in blasting hole in geophysical prospecting.
It can also be used to supply flushing liquid into well in bedrock drilling of engineering geological drilling rig.
The pump has the characteristics of small volume, light weight and durability, and is more suitable for geological exploration.
Main Parameter of BW160 Hydraulic Triplex Plunger Drill Rig Mud Pump
Pump Type Horizontal Type of action Double Acting cylinders 1
Cylinder diameter (mm) 95
Stroke (mm) 85
Number of reciprocations (times / minute) 165
Displacement (liters / min) 160
Working pressure (MPa) 1.6
Transmission shaft speed (r / min) 951
V - belt pulley diameter (mm) 270
V-belt pulley type and slot number B-type × 3 slot
Transmission power (kW) 7.5
Diameter of suction pipe (mm) ø45
Drain pipe diameter (mm) ø38
Overall dimensions (L* W* H) (mm) 1110* 800*950
Weight (not including power machine) (kg) 136
Motor Y132M-4 Power 7.5KW Speed 1440r / min
Diesel Engine R180 Power 5.67KW Diesel Engine Speed 2600r / min
