Bms500 Automotive Current Transducer - China
price: 39.00 Dollar US$

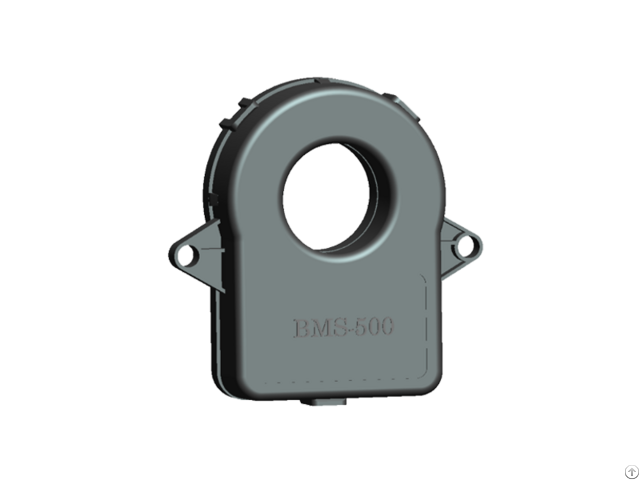

BMS500 fluxgate transducer is made of an excitation magnetic ring and a control circuit.
Under normal
conditions, the control circuit generates a fixed excitation current frequency to alternately place the magnetic
core at the maximum saturation point.
When the measured current flows, the primary current is measured by
detecting the symmetry of the saturation point.
The BMS series is suitable for battery monitoring systems that require high accuracy and low offset.
It can realize the isolation measurement between the primary current (high voltage) and the secondary
current (12V system).
PHEV and EV system may use different technologies of batteries.
One very important parameter that mayinfluence the stability of the SOC is the temperature.
The battery temperature affects vehicle performance, reliability, safety and lift-cycle cost.
The BMS500 series is qualified between -40℃ to 85℃ but the transducer shows a better accuracyinarestricted temperature range in order to deliver a very accuracy current measurement.
Company Contact:
- Phone: +86 755 82593440
- Address: Room 330, Building B, Huayuan Hi-tech Pioneer Park, Baoyuan Rd, Bao An District, ShenZhen, Guangdong, shenzhen , guangdong , China
- Email:
- Website: https://www.hangzhiprecision.com/
Published date: September 24, 2024 - Modified date: October 9, 2024
- Business Description: Shenzhen Hangzhi Precision Electronics Co., Ltd was founded in October 2017 - Hangzhi located in Shenzhen, design and manufacture a wide range of high precision AC DC current transducers, voltage transducers and testers to meet the needs of different industries, such as medical, railway, renewable energy, EV/HEV charging stand and calibration & testing etc.
Our products are based on fluxgate technology and have the characteristics of high precision, low zero drift, low temperature drift and full range.
