Product introduction

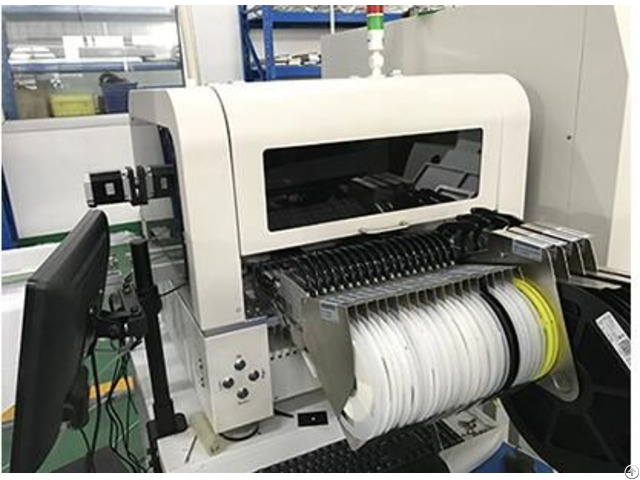

SMT6000V is dedicated to research and develop electronic products, it is a small desktop type machine which suits for small and medium-sized enterprise assembly line is developed by our company.

This machine has superior function 1 - small batch production.

2 - Experiment, research and development.

3 - Sample Preparation and trial-produce.

4 - Processing and Mounting LED SMT, etc.

The main characteristic of SMT6000V is small volume, Mounting very fast, high precision when it works, simple operation, stable running and competitive price.

Not only can help you to avoid the mounting instability by man-made, but also can help you to solve the problem like high labor cost, high site cost, low production efficiency, and so on.

Our product can greatly improve the productivity.

Product Technical Specification SMT6000V Specification

Visual System up and down visual system

Visual function Mark point positioning function Applicable PCB 20mm*20mm~470mm*376mm

Placement Head Quantity 2 Feeders 20

Strip Roller Quantity 27

IC Tray 2 Shelves (+ Simple Tray IC Shelf)

Mounting Capability 6000PCS/h

Mounting Accuracy ±0.03mm

Applicable Components 0402~24mm, CHIP, SOP, QFP, SOT (Tape Width: 8mm, 12mm, 16mm, 24mm)

External Dimension 648*690*470 Vacuum Pump (Included, Mute Pump)-92KPA

Vacuum Pump Quantity 2(Included, Mute Pump)

Power Supply 220V, 50Hz

Average Working Power 100W

Net Weight 63.5KG

Total Weight(including the packing) 90KG Product features Ø On the basis of programming and control system of WindowsXP, it is supported to import the coordinate file and online programming Ø vision correction Mounting vision correction Machine tool vision correction Ø 2 Placement Heads can work in the same time and the mounting range is big.

It supports big and thick component.

4 placement heads can be choosed Ø Laser alignment, online programming Ø Vacuum detection, intelligent discriminant good or bad adsorption

Ø Detection of material lack, automatic alarm

Ø Support multi-feeding ways: feeder belt, feeder, IC tray, IC material tray Ø Encapsulation apply

1)common resistance, capacitance, inductance and diode 2) SOP series 3)QFN, TQFP 4)TO252 SMA SMB 5)SOT series SOP-8 (SO8) narrow SSOP-20 wide TSOP-44 SMA SMB OT252

0402, 0603

0805, 1206

1210, 1812

2010, 2512

3528, 5050 LL34 TQFP-144 SOT-223 SOT-23 SOT-89
