Automatic Box Roll Forming Machine Production Line - China

Electrical Cabinet enclosure roll forming machine production line

Roll forming machine for production electrionic cabinet enclosure, including cabinet panel forming machine, panel box bending.

Distribution box production line process

(A) 2 in 1 Uncoiler Straightening→servo feeder→Hydraulic press breach device → Guide device → roll forming machine → hydraulic punch →shear device (including knife)→ finished product rack

(B) Bending machine with tool Main Forming machines (for panel width 150, 200, 250, 300, 350mm ) 5.1 Forming Roller：20 stations, and add Rub-roll, To make sure the surface profile no scratches.

5.2 Side Panel：T.

18mm, A3 steel Heavy duty 。

5.3 Rolling speeding: 2-8 m/min。

5.4 Roller material：GCr15, overall quenching, hardness HRC56-62 ℃.

5.5 Motor power：7.5KW。 5.6 Main Roller ：￠75mm, 45 #。

5.7 Equipment base: 45 # H type using welded steel plate.

5.8 Transmission: chain drive.

5.9 Security: across the board with emergency stop buttons, easy to handle emergencies, to ensure that equipment and operator safety.

And other gear in the chain and the staff could easily lead to injury transmission section covered with protective cover, to ensure the safety of workers.

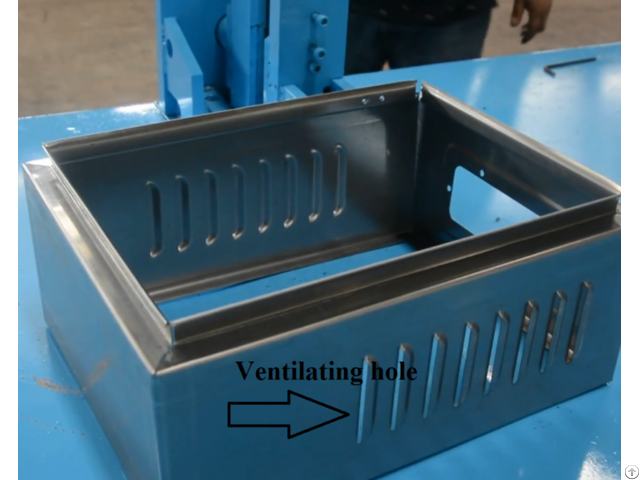

Distribution box roll forming machine for producing steel box which using electrical industry.

Distribution box application

Power distribution box is widely used in architectural lighting and small power control circuits of hotels, apartments, buildings, ports, stations, airports, warehouses, hospitals, factories and mines, etc.

It is suitable for AC 50Hz, AC single-phase 240V, three-phase 450V and In the following, indoor lighting and power distribution lines with currents of 250A or less are used for line overload protection, short circuit protection, and line switching.

Power distribution box is suitable for civilian and not need professional technology, it is very easy using and safety.
