980nm 1030nm 1064nm High Power Pm Optical Circulator - China

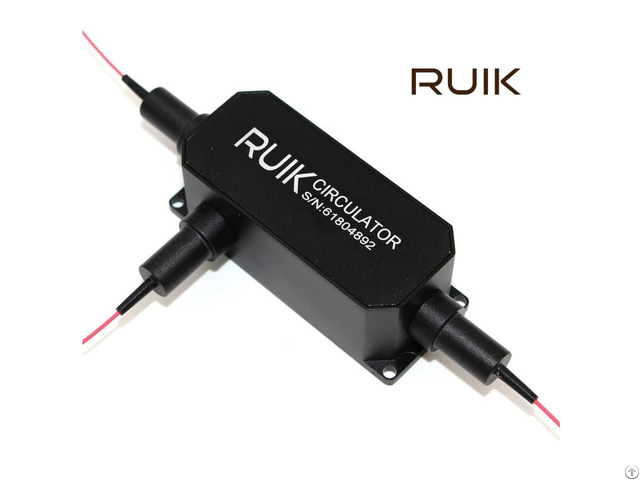

Ruik's pm circulator is one type of products, allowing the light to transmit through the route established, from port 1 to port 2, and from port 2 to port 3, blocking the reversed.

Parameters Unit Value

Center Wavelength nm 1064 or 1030 or 980

Operating Wavelength Range nm ±5

Typ.

Peak Isolation dB 25

Max.

Isolation at 23℃ dB 22

Typ.

Insertion Loss at 23℃ dB 1.3

Max.

Insertion Loss at 23℃ dB 1.5

Max.

Polarization Dependent Loss at 23℃, only for PI dB 0.15

Min.

Extinction Ratio at 23℃, only for PM dB 20

Min.

Return Loss(Input/ Output) dB 45

Min.

Cross Talk dB 45

Max.

Average Optical Power W 20 or Specified

Max.

Peak Power for ns Pulse kW 10 or Specified

Max.

Tensile Load N 5

Package Dimension mm 64x28x26

Operating Temperature ℃ +10~+50

Storage Temperature ℃ 0~+60 Our main products include High Power Components up to 100W (20kW), Polarization Maintaining (PM) and Single-mode Fiber Components with ranging from 780nm to 2000nm.

We also provide Customized components to our customers.

High power Optical Fiber Components:

-Optical Fiber Isolator, up 100W;

-Free Space Isolator, up to 100W;

-Optical Circulator, up to 30W;

-Pump Laser Protector;

-Band Pass Filter;

-Nx1 Pump Combiner;

-Cladding Power Stripper;

-Mode Field Adapter;

-(N+1)x1 Pump & Signal Combiner, 200W/port; Polarization Maintaining Fiber Components:

-In Line Polarizer/Depolarizer;


-In Line Faraday Isolator;

-Optical Circulator;

-Fused WDM / Coupler;

-Filter WDM / Coupler;

-Fiber DWDM

-Fiber Mirror;

-Faraday Rotator;

-Fiber Patch cord / Jumper;

-PLC Splitter Module;

-Tap / WDM / Isolator Hybrid;

Manual Variable Optical Attenuator;

-1x2 Polarization Beam Splitter / Combiner (PBS/C)

-1x2 Isolator & Polarization Beam Splitter / Combiner (IPBS/C)
