8w Dc Converters - China

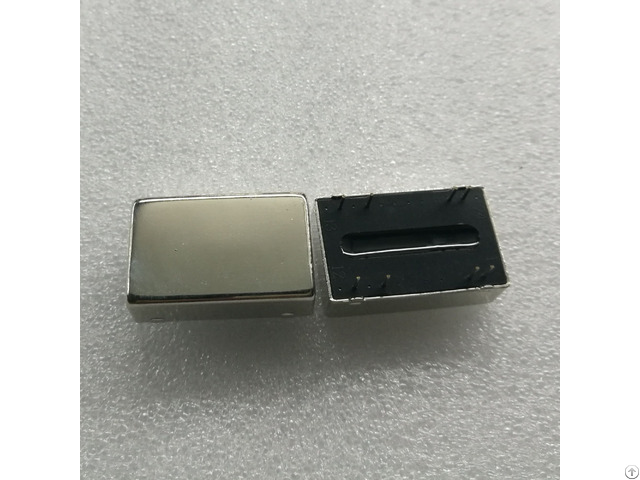

8W DC to DC converters 8W Wide Input Voltage DC/DC Converters The rated output power of TP08DA converters is 8W, the outline dimensions is "31.75*20.32*11.2", 2: 1 and 4: 1 wide input Voltage range, the voltage range is 9V-18V, 18V-36V, 36V-72V, 9V-36V and 18V-72VDC.

The accuracy of the converter can reach ±1% it can be widely used in telecommunications, railway transportation, instrument and etc.

Part Number Input Voltage Output voltage(VDC) Voltage(VDC) Rated Range values TP08DA12S03 12(2: 1) 9-18 3.3

TP08DA12S05 12(2: 1) 9-18 5

TP08DA12S12 12(2: 1) 9-18 12

TP08DA12S15 12(2: 1) 9-18 15

TP08DA12D05 12(2: 1) 9-18 ±5

TP08DA12D12 12(2: 1) 9-18 ±12

TP08DA12D15 12(2: 1) 9-18 ±15

TP08DA24S03 24(2: 1) 18-36 3.3

TP08DA24S05 24(2: 1) 18-36 5

TP08DA24S12 24(2: 1) 18-36 12

TP08DA24S15 24(2: 1) 18-36 15

TP08DA24S24 24(2: 1) 18-36 24

TP08DA24D05 24(2: 1) 18-36 ±5 TP08DA24D12 24(2: 1) 18-36 ±12

TP08DA24D15 24(2: 1) 18-36 ±15

TP08DA48S03 48(2: 1) 36-72 3.3

TP08DA48S05 48(2: 1) 36-72 5

TP08DA48S12 48(2: 1) 36-72 12

TP08DA48S15 48(2: 1) 36-72 15

TP08DA48D05 48(2: 1) 36-72 ±5

TP08DA48D12 48(2: 1) 36-72 ±12

TP08DA48D15 48(2: 1) 36-72 ±15

TP08DA24S05W 24(4: 1) 9-36 5

TP08DA24S12W 24(4: 1) 9-36 12

TP08DA24S15W 24(4: 1) 9-36 15

TP08DA24D05W 24(4: 1) 9-36 ±5

TP08DA24D12W 24(4: 1) 9-36 ±12

TP08DA24D15W 24(4: 1) 9-36 ±15

TP08DA48S05W 48(4: 1) 18-72 5

TP08DA48S12W 48(4: 1) 18-72 12

TP08DA48S15W 48(4: 1) 18-72 15

TP08DA48D05W 48(4: 1) 18-72 ±5

TP08DA48D12W 48(4: 1) 18-72 ±12

TP08DA48D15W 48(4: 1) 18-72 ±15

Company Contact:

• Posted By: TOPPOWER

• Phone: 862062162688-809

• Address: Building No.3 ,Rui Fa Road No.15,, Guangzhou , Guangdong , China

• Email:

• Website: https://en.gztoppower.com

• Business Description: Toppower is a professional manufacturing enterprise of DC DC converters.

  We focus on miniature DC DC converters researches, produces and markets,

  Our products have been used in many fields; such as: Industrial Control

  System, Power system, Apparatus and Instrument, Medical facilities, Rail

  transit system, Telecommunication Equipment, Security and Protection

  Equipment and Military Industrial System etc.

  Toppower owns an outstanding researching team.

  The products are 100% inspected and tested automatically by the advanced testing equipment.

  The unique product design, manufacturing process and equipment make our products with high efficiency and very good reliabilities.

  All DC DC converters are made with high quality spare parts and UL 94V 0 package material from the international prestigious suppliers.

  As well, the products meet ROHS requirement and covers 40+ series with thousands of variants from 1 to 50W for your choice.

  Our team targets to support you with professional products and service.

  We also have stocks for the popular variants so as to meet your emergency needs on time.

  we,TOPPOWER can produce:

  0.1W-400W DC-DC converters,1W-30W AC-DC converters,(SIP/DIP/SMD)

  15W-1200W Enclosed /Open frame/DIN RAIL type AC-DC Switching Power supply,

  TOPPOWER quality : ISO9001: 2015, IATF16949: 2016

  Guangzhou Top Power electronics Technology Co., Ltd
