600w Wind Turbine - China

The 600w wind turbine has a rated voltage of 24V/48V.

The compact shape of the wind turbine blades enables it to generate electricity at lower wind speeds because it has the lowest starting wind speed and a large windward area.

Product Description

1 - Description

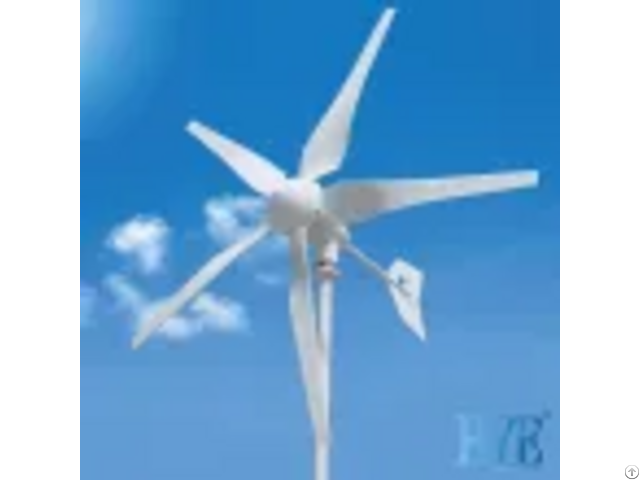

This 600w wind turbine uses a 5-blade design with smart blade aerodynamics braking and electromagnetic speed limitation function.

Patented aerofoil 5 blades design with true symmetrical and twisted aerodynamic feature which ensures rotor capture maximum power from wind and operates in amazingly low noise and minimal vibration.

Our 600w wind turbine with minimal vibration and low noise could be mounted on rooftop safely and its operation won't affect resident.

2 - Product Characteristics

▶ High Efficiency Rated output 600W

▶ Light Breeze Start Up at 2.5 m/s

▶ Light Weight only 25KG

▶ Heavy Wind Self-protection with smart blade aerodynamic braking

▶ Can be used in conjunction with solar panels

▶ Minimal Vibration and Low Noise Operation

▶ Anti-rust & Anti - corrosion, Damp - proof & Sand-proof

▶ 3-phase direct drive permanent magnet generator with maintenance free

▶ Quick installation and easy operation

▶ Running stably and safely with 15 years lifetime

3 - Applications

600W Horizontal Wind Turbine 5 Blades With Aerodynamic Braking suitable for residential and commercial applications both for off grid and on grid power systems.

The unit provides a durable, reliable usage.

For example, 1) Villages, remote home off-grid, isolated farm, vineyard

2) Telecoms repeaters

3) Wind solar charging station

4) Remote mining and drilling operations

5) Relief team or scientific research team working off the grid

6) Remote security monitoring

7) Off-grid fishing or hunting cabins

8) Boats or marine vessels

4 - Special features - Patented Blade Design

Patented aerofoil 5 blade design with true symmetrical and twisted aerodynamic design which ensures rotor capture maximum power from wind (Cp>0.35 in low wind) and operates in amazingly low noise and minimal vibration.

● True symmetrical and balanced aerofoil blade ensure rotor matching with generator perfectly.

● Large ratio of tip section chord to root section chord and variable chord airfoil blade ensures rotor start-up easily and running smoothly with high torque & RPM at lower wind condition.

● Aerodynamic blades designed with over-speed braking system to make sure generator well protected in higher wind.

● Reinforced nylon glass-fiber using advanced thermoplastic engineering and precision injection molding technology for higher strength, flexibility and reliability.

● Cp.

>0.35 at low wind

5 - Specifications

Model HY-600L/24V/48V

Rated Output 600W

Peak Output 750W

Controller Output Voltage (V) DC 24V/48V

Start-up Speed 2m/s or 4.5mph

Cut-in Speed 2.5m/s or 5.6mph

Rated Rotor Speed (RPM) 750

Rated Wind Speed (m/s) 12m/s or 26.8mph

System average Cp.

≥0.36

Rated Charging Current(A) 25/12.5

Noise Level ＜20dB (5m behind turbine @ 5m/s gusting)

KWH/month (monthly avg.

V=5.5m/s) 91

Working Tem.

Range ℃ From -40℃ to 60℃

Survival Max.

Wind 50m/s or 110mph

Over-speed control Electromagnetic & blade aerodynamic braking

Number of Blades 5

Rotor Diameter (m) 1.75

Swept Area (m²) 2.4

Blade Material Reinforced glass-fiber nylon

Generator Type Brush-less 3-phase PMA (Neodymium Magnet)

Generator Material Aluminum alloy body &stainless steel rotor

Net Weight 25 KG

Tower Connection Flange connection or bolt-on clamp
