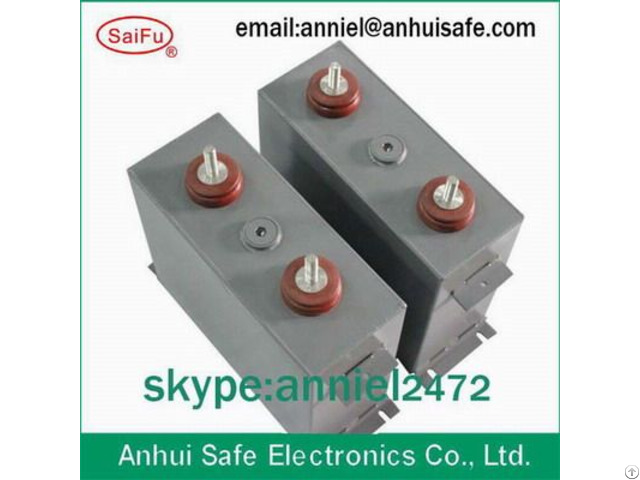

4500vdc 3500vdc 2500vdc Power Capacitor - China

Pulse capacitor Features

Specific can density, capacitors energy storage is strong

Low ESR, high ripple current handling capabilities and Large current shock

Low Inductance, Dv/dt large, frequency characteristics is good.

Self-healing property

Long lifetime(≥100000h)

High vacuum note oil, heat dissipation of capacitor performance is stable and reliable

Huge capacitance

High thermal conductivity

DC Filter CapacitorApplications

Used for rail traffic traction or the ship drive converter.

Used for various power industry inverter, such as high voltage variable frequency drive device

Used for the harmonic management, SVG equipment.

1 - Metallized polypropylene film convolute, special internal structure and non-inductive structure.

Copper screw leads, fire-retardant plastic shell, or heat tape wrapped, epoxy resin sealed.

2 - High frequency low ESR, can stand strong current, a very small parasitic inductance.

3 - Suit inverter current, continuous current, switching power supply, high frequency welding machine and others high capacity resonant circuit.

Magnetizier Capacitor/Pulse CapacitorTechnical Specification

Temperature Range

-40°C~+85°C

Capacity Range

100μF~12000μF

Capacitance deviation

±5%(J), ±10%(K)

Voltage

500VDC~15000VDC

Dielectric

1.5UN/60S

Dissipation

tgδ≤0.002(at 1KHz)

Insulation resistance

CxRs≥5000S(at20°C 100V.

DC 60S)

Shock current capability

dv/dt>50v/μs

Flammability

UL94V-0

Stray inductance

≤30nH

Effective Current

10~80A

Reference Standard

Enterprise standards in line with IEC61071, IEC61881, GB17702.1

Case components

aluminum, plastic, 304 stanless steel

Terminals

tinned brass nut or screws

Installation

whatever installation

Failure rate

50 FIT
