40w Wide Input Voltage Dc Converters - China

Part Number Input Voltage Output voltage(VDC) Voltage(VDC) Rated Range values TP40DG12S03 12(2: 1) 9-18 3.3

TP40DG12S05 12(2: 1) 9-18 5

TP40DG12S12 12(2: 1) 9-18 12

TP40DG12S15 12(2: 1) 9-18 15

TP40DG12S24 12(2: 1) 9-18 24

TP40DG12D05 12(2: 1) 9-18 ±5

TP40DG12D12 12(2: 1) 9-18 ±12

TP40DG12D15 12(2: 1) 9-18 ±15

TP40DG24S03 24(2: 1) 18-36 3.3

TP40DG24S05 24(2: 1) 18-36 5

TP40DG24S12 24(2: 1) 18-36 12

TP40DG24S15 24(2: 1) 18-36 15

TP40DG24S24 24(2: 1) 18-36 24

TP40DG24D05 24(2: 1) 18-36 ±5 TP40DG24D12 24(2: 1) 18-36 ±12

TP40DG24D15 24(2: 1) 18-36 ±15

TP40DG48S03 48(2: 1) 36-72 3.3

TP40DG48S05 48(2: 1) 36-72 5

TP40DG48S12 48(2: 1) 36-72 12

TP40DG48S15 48(2: 1) 36-72 15

TP40DG48S24 48(2: 1) 36-72 24

TP40DG48D05 48(2: 1) 36-72 ±5

TP40DG48D12 48(2: 1) 36-72 ±12

TP40DG48D15 48(2: 1) 36-72 ±15

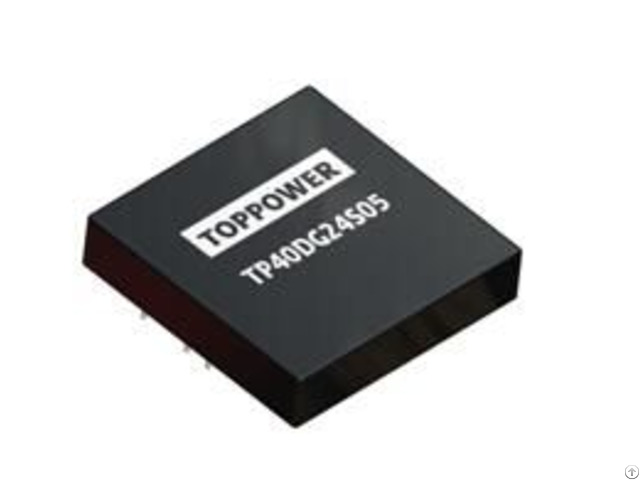

The rated output power of TP40DG converters is 40W, the outline dimensions is "50.8*50.8*11.2", 2: 1 input voltage range, the voltage range is 9V-18V, 18V-36V, 36V-72V.

The accuracy of the converter can reach ±1%, it can be widely used in telecommunications, railway transportation, instrument and etc.
