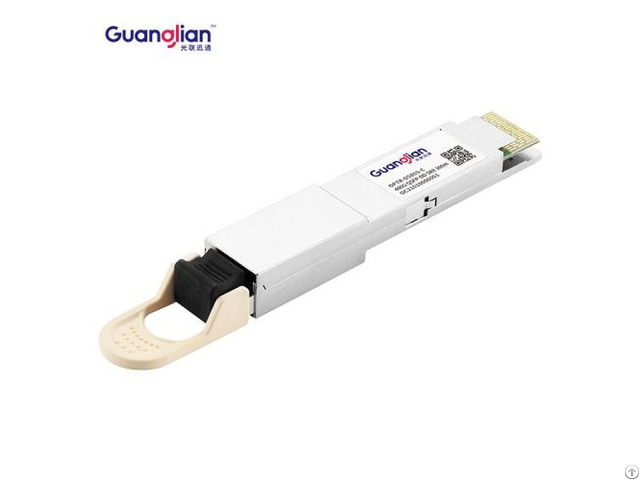

400gbase Qsfp Dd Sr8 100m Optical Transceiver Module - China

Guanglian’s 400GBASE-SR8 optical transceiver module supports link lengths of up to 100m over multimode fiber (MMF) with MTP/MPO-16 connector.

It is compliant to IEEE 802.3bs protocol and 400GAUI-8/CEI-56G-VSR-PAM 4 standard.

The 400 Gigabit Ethernet signal is carried over eight wavelengths.

Multiplexing and de-multiplexing of the eight wavelengths are managed within the device.

It is suitable to be used in various applications, such as data centers, high-performance computing networks, proprietary Interconnections etc.

Product Features

COB (Chip on Board) packaging technology

Supports 400Gbps aggregate bit

Low Power Dissipation ≤12W

MPO-12 Two Row receptacle

Up to 70m transmission with OM3 multi- mode fiber

and 100m transmission with OM4 multi-mode fiber.

8x50G PAM4 VCSEL/PIN photo detector

Operating Case Temperature: 0~70℃

Application

400GBASE-SR8 Ethernet

Data Center

HPC Interconnects

Proprietary Interconnections

Selection Guide: 400G QSFP-DD SR8 Transceiver

P/N Package Data Rate Interface Temp Reach Tx Optics Rx Optics Laser Lambda Detector Lambda

OPTR-DS85S-C QSFP-DD 8*53.125Gb/s MPO 0-70 100m VCSEL 850nm PIN 850nm
