3w Wide Range Input Voltage Pcb Mountable Converters - China

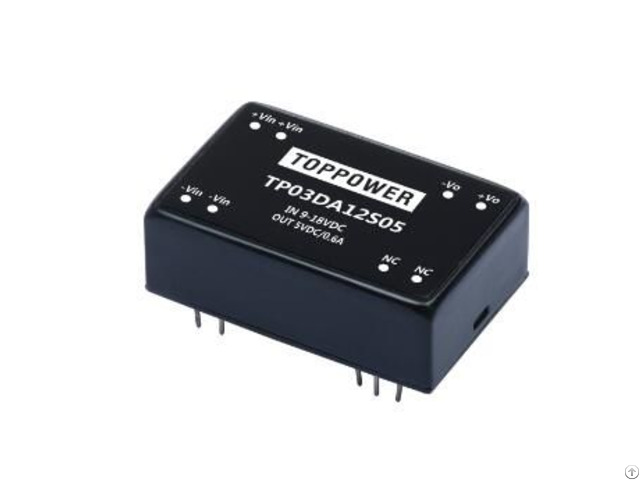

The rated output power of TP03DA converters is 3W, the outline dimensions is "31.75*20.32*11.2", 2: 1 and 4: 1 wide input voltage range, the voltage range is 4.9V-9V, 9V-18V, 18V-36V, 36V-72V, 9V-36V and 18V-72VDC.

The accuracy of the converter can reach ±1%, It can be widely used in telecommunications, railway transportation, instrument and etc.

Part Number Input Vlotage Output

voltage(VDC) Voltage(VDC)

Rated Range values

TP03DA05S05 5(2: 1) 4.5-9 5

TP03DA05D05 5(2: 1) 4.5-9 ±5

TP03DA12S03 12(2: 1) 9-18 3.3

TP03DA12S05 12(2: 1) 9-18 5

TP03DA12S12 12(2: 1) 9-18 12

TP03DA12S15 12(2: 1) 9-18 15

TP03DA12D05 12(2: 1) 9-18 ±5

TP03DA12D12 12(2: 1) 9-18 ±12

TP03DA12D15 12(2: 1) 9-18 ±15

TP03DA24S03 24(2: 1) 18-36 3.3

TP03DA24S05 24(2: 1) 18-36 5

TP03DA24S12 24(2: 1) 18-36 12

TP03DA24S15 24(2: 1) 18-36 15

TP03DA24D05 24(2: 1) 18-36 ±5

TP03DA24D12 24(2: 1) 18-36 ±12

TP03DA24D15 24(2: 1) 18-36 ±15

TP03DA48S03 48(2: 1) 36-72 3.3

TP03DA48S05 48(2: 1) 36-72 5

TP03DA48S12 48(2: 1) 36-72 12

TP03DA48S15 48(2: 1) 36-72 15

TP03DA48D05 48(2: 1) 36-72 ±5

TP03DA48D12 48(2: 1) 36-72 ±12

TP03DA48D15 48(2: 1) 36-72 ±15

TP03DA24S05W 24(4: 1) 9-36 5

TP03DA24S12W 24(4: 1) 9-36 12

TP03DA24S15W 24(4: 1) 9-36 15

TP03DA24D05W 24(4: 1) 9-36 ±5

TP03DA24D12W 24(4: 1) 9-36 ±12

TP03DA24D15W 24(4: 1) 9-36 ±15

TP03DA48S05W 48(4: 1) 18-72 5

TP03DA48S12W 48(4: 1) 18-72 12

TP03DA48S15W 48(4: 1) 18-72 15

TP03DA48D05W 48(4: 1) 18-72 ±5

TP03DA48D12W 48(4: 1) 18-72 ±12

TP03DA48D15W 48(4: 1) 18-72 ±15
