3w 5w 3kvac Isolation Wide Input Ac Dc Converters - China

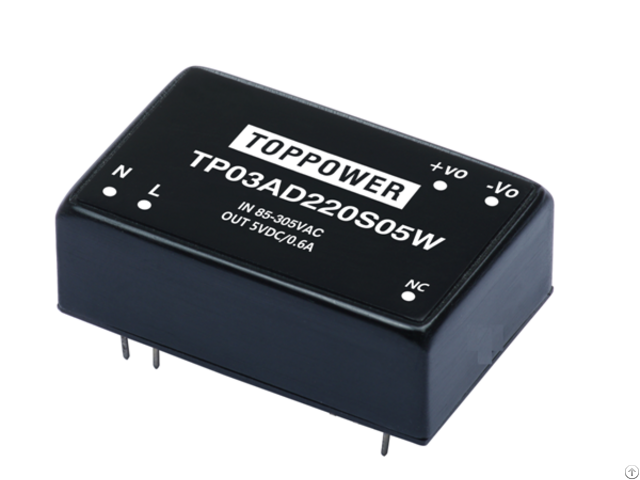

3W, 5W 3KVAC Isolation Wide Input AC/DC Converters

TP03(05)AD series is 3W, 5W with wide input voltage range, for both AC input and DC input application, come with Low power consumption <0.05W, low Leakage current @0.1mA, miniature size: 35*25.4*18mm, and good EMC performance, can meet the EMC and safety specifications: IEC / EN61000-4 CISPR32 / EN55032, UL62368, EN62368, IEC62368 and other related standards.

This series of power supplies have important applications in many fields such as LED, street light control, industry, office and civil industries, etc.

***please refer to the application circuit when the parts is applied in the environment with severe electromagnetic compatibility.

Part Number Input Output Voltage VAC Voltage VDC Voltage(VDC)

TP03AD220S03W 85-305 120-430 3.3

TP03AD220S05W 85-305 120-430 5

TP03AD220S09W 85-305 120-430 9

TP03AD220S12W 85-305 120-430 12

TP03AD220S15W 85-305 120-430 15

TP03AD220S24W 85-305 120-430 24

TP05AD220S03W 85-305 120-430 3.3

TP05AD220S05W 85-305 120-430 5

TP05AD220S09W 85-305 120-430 9

TP05AD220S12W 85-305 120-430 12

TP05AD220S15W 85-305 120-430 15

TP05AD220S24W 85-305 120-430 24
