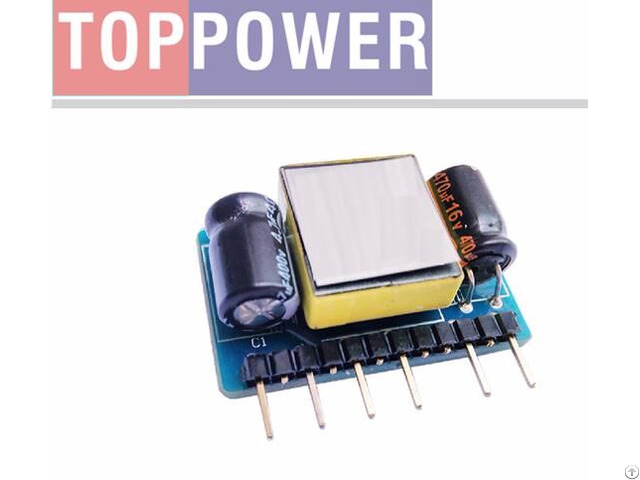

3W 3KVAC Isolation Wide Input AC/DC Converters

The rated output power of TP03AL series is 3W with wide input voltage range, for both AC input and DC input application.

High reliability, Low power consumption, safety isolation .

Widely used in industrial control and electrical instrumentation, smart home, which do not have high requirement on EMC.

The EMC external circuit must be added if the products need to be applied to EMC harsh environment .

Part Number Input Voltage Output Efficiency (Typ.

)

% Voltage (VAC) Voltage (VDC) Current(A) Rated Range values TP03AL220S03LSW 220(4: 1) 85-265 3.3 0.60 63

TP03AL220S05LSW 220(4: 1) 85-265 5 0.60 68

TP03AL220S09LSW 220(4: 1) 85-265 9 0.33 72

TP03AL220S12LSW 220(4: 1) 85-265 12 0.25 74

TP03AL220S15LSW 220(4: 1) 85-265 15 0.20 76

TP03AL220S24LSW 220(4: 1) 85-265 24 0.125 80
