3kvdc Isolated Single Output Smd Dc Converters - China

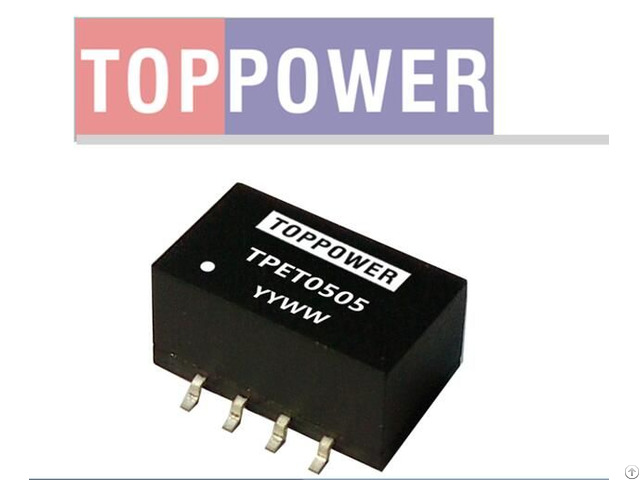

0.25W 3KVDC Isolated Single Output SMD DC/DC ConvertersMiniature surface mounted DC/DC Converters are an ideal and economical solution for many applications where noise reduction, voltage isolation, voltage conversion in distributed power systems is required.

these converters are qualified for the higher temperatures requested by lead-free reflow solder processes, especially for automated SMD production lines.

Part Number Nominal Input Voltage Output Voltage Output Current (Max.

/Min) Efficiency V V mA %

TPET0303-W2 3.3 3.3 76/7.6 72 TPET0305-W2 3.3 5 50/5 77 TPET0309-W2 3.3 9 28/2.8 77 TPET0312-W2 3.3 12 20.8/2.08 77 TPET0315-W2 3.3 15 16.7/1.67 77 TPET0503-W2 5 3.3 76/7.6 74 TPET0505-W2 5 5 50/5 69 TPET0509-W2 5 9 28/2.8 75 TPET0512-W2 5 12 20.8/2.08 78 TPET0515-W2 5 15 16.7/1.67 78 TPET1203-W2 12 3.3 76/7.6 74

TPET1205-W2 12 5 50/5 67 TPET1209-W2 12 9 28/2.8 73 TPET1212-W2 12 12 20.8/2.08 74 TPET1215-W2 12 15 16.7/1.67 75 TPET1505-W2 15 5 50/5 77 TPET1515-W2 15 15 16.7/1.67 75 TPET2403-W2 24 3.3 76/7.6 74

TPET2405-W2 24 5 50/5 67 TPET2409-W2 24 9 28/2.8 73 TPET2412-W2 24 12 20.8/2.08 74 TPET2415-W2 24 15 16.7/1.67 75 Add suffix “P” for continuous short circuit protection, for example TPET0505P-W2 - Add suffix “X” has not 5, 10, 12 pin, for example TPET0505X-W2.

Company Contact:

• Posted By: TOPPOWER

• Phone: 862062162688-809

• Address: Building No.3 ,Rui Fa Road No.15,, Guangzhou , Guangdong , China

• Email:

• Website: https://en.gztoppower.com

• Business Description: Toppower is a professional manufacturing enterprise of DC DC converters.

  We focus on miniature DC DC converters researches, produces and markets,

  Our products have been used in many fields; such as: Industrial Control

  System, Power system, Apparatus and Instrument, Medical facilities, Rail

  transit system, Telecommunication Equipment, Security and Protection

  Equipment and Military Industrial System etc.

  Toppower owns an outstanding researching team.

  The products are 100% inspected and tested automatically by the advanced testing equipment.

  The unique product design, manufacturing process and equipment make our products with high efficiency and very good reliabilities.

  All DC DC converters are made with high quality spare parts and UL 94V 0 package material from the international prestigious suppliers.

  As well, the products meet ROHS requirement and covers 40+ series with thousands of variants from 1 to 50W for your choice.

  Our team targets to support you with professional products and service.

  We also have stocks for the popular variants so as to meet your emergency needs on time.

  we,TOPPOWER can produce:

  0.1W-400W DC-DC converters,1W-30W AC-DC converters,(SIP/DIP/SMD)

  15W-1200W Enclosed /Open frame/DIN RAIL type AC-DC Switching Power supply,

  TOPPOWER quality : ISO9001: 2015, IATF16949: 2016

  Guangzhou Top Power electronics Technology Co., Ltd
