24awg 300c Tubing Encapsulated Cable - China
price: 0.80 Dollar US$

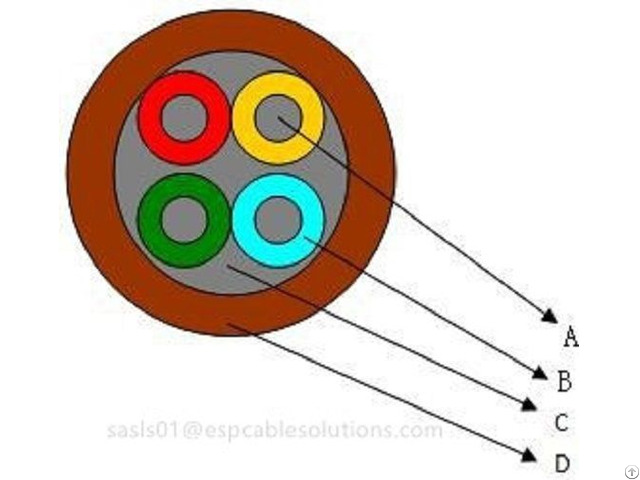

Product Name: 4×24AWG, 300℃ Tubing Encapsulated Cable Conductor: 7/0.20mm Tinned/Nickel coated stranded copper conductor, 4 cores Insulation: PFA insulation, OD: 1.0mm±0.10mm, Cores color: Red, Green, Yellow, White.
Jacket: PFA jacket, OD: 2.48mm Tubing: 4mm 316L stainless steel tube with 0.76mm wall thickness Temperature Rating: 300℃ External Collapse Pressure: ≤120 MPA Tensile Force: ≥6.00 KN Insisting the conception of survival based on quality of the products and development originate from innovation, our company always concern about promotion of quality and technical innovation.
We are High-tech Enterprise and Quality Trust Enterprise, our main products have ESP Cable, Motor Lead Extensions, ESP Pump, Pump Housing, Motor Shaft, Pump Shaft, Aluminum Alloy Cable, XHHW-2, Service Entrance Cable, MC Cable, RHH Cable, RHW Cable, USE Cable, USE-2, Mobile Home FDR, SE Cable, PV Cable, Single Conductor UD, Duplex Conductor UD, Triplex Conductor UD, Covered Line Wire, THW, TEW, TFFN, TFN, THHN, MTW, THWN-2, WHWN, THHW, THWN, XHHW, RHW-2, SIS, XHH, TW, OPGW, TECK90, Tubing Encapsulated Cables, 4mm TEC Cables, Duplex 2205 TEC Cables, Incoloy 825 TEC Cables, Downhole Sensor Cables, Downhole Fiber Optic Cables, PTFE Insulated Wires & Cables, PFA Insulated Wires & Cables, PTFE/PFA Coated Stainless Steel Wires Ropes, Thermocouple Wires, 316L Capillary Tubing, Duplex 2205 Capillary Tubing, Incoloy 825 Capillary Tubing, Control Line Tubing, H07V-R Wire, ABC Cables, Flexible Rubber Cables, Surface Cables, Flexible Control Cables, Fiber Cables, AAC, AAAC, ACAR, ACSR etc.
Company Contact:
- Posted By: ESP Cable Solutions Co.,Limited
- Phone: 86 532 8099 996
- Address: Room208, BuildingD2, 1688 chan ye yuan Bei lao Road, Qingdao , Shandong , China
- Email:
Published date: January 12, 2020
- Business Description: ESP Cable Solutions Co.,Limited, we based in Dongying city, China and engaged in ESP Pumps and Cables production more than 10 years.
We only professional in ESP Systems,including ESP Cables, Tubing Encapsulated Cable (TEC Cable), Capillary tubing, TECK90 Cable, Motor lead extensions(MLE), Housing, Magnet wires, Power cables, Logging Cable
