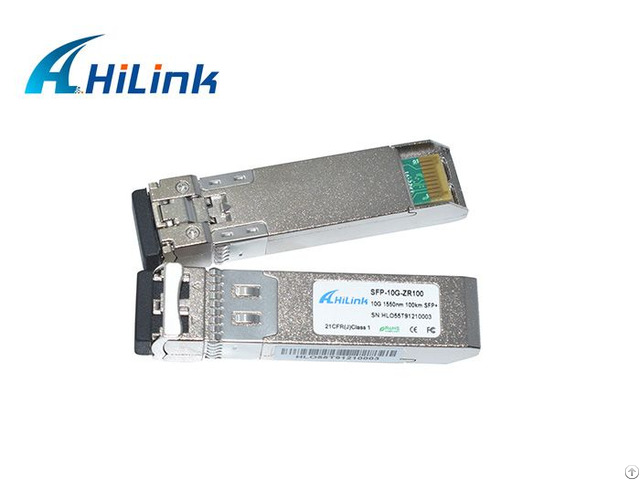

10G 1550NM 100KM SFP+

Hilink 10G 100km SFP+ transceivers are designed for 10G Ethernet 10G BASE-ZR/ZW per 802.3ae, and it can support data-rate from 9.95Gb/s to 11.1Gb/s.

Digital diagnostics are available via I2C interface as specified in the SFP+ MSA.

PRODUCT DESCRIPTION

Support 100KM 10G reach.

For 25db power link.

Hilink 10G 1550NM 100KM SFP+ Features:

Hot Pluggable

1550nm cooled EML Transmitter

High sensitivity APD Receiver

Distance up to 100km over SMF

Single 3.3V Power supply and TTL Logic Interface

Duplex LC Connector Interface

Power Dissipation: SFP+< 1.5W

Compliant with SFF-8431 MSA, SFF-8432 MSA, SFF-8472 MSA

Digital Diagnostic Monitoring Function

Operating Temperature: 0-70℃

10G SFP+ Optical Transceiver Applications:

10GBASE-ZR/ZW

10G Fiber Channels
