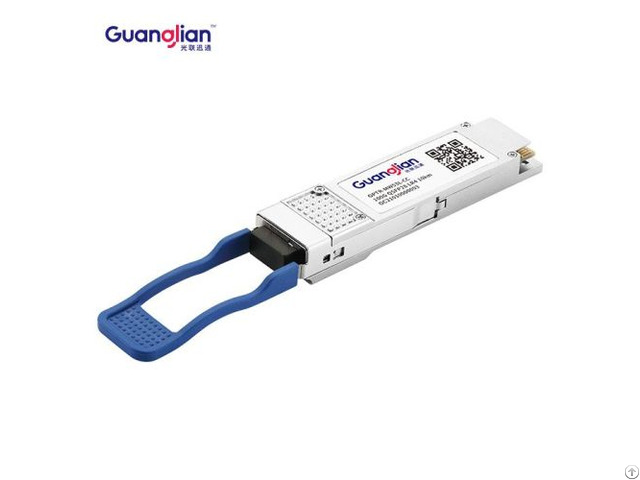

100gbase Qsfp28 Lr4 10km Optical Transceiver Module Cob Packaging For Data Center - China

Guanglian's 100G QSFP28 LR4 transceiver modules are designed for use in 100BASE Ethernet throughput up to 10km over single mode fiber(SMF)with duplex LC connectors.

Our COB+PCBA integrated design, able the process automated production.

The transceiver is compliant with IEEE 802.3ba 100GBASE-LR4, IEEE 802.3bm, SFF-8665 and SFF-8636 and the QSFP28 MSA standards.

It is a cost-effective, low power LAN-WDM optical transceiver with high port densities and compact size, suitable to be used in various applications, such as data center, high-performance computing networks, enterprise networks etc.

Product Features

COB (Chip on Board) packaging technology

Support 25.78Gbps per channel and 103.1Gbps aggregate bit rate

4 x 25Gb/s DFB-based LAN-WDM DML transmitter

4 x 25G electrical interface

Up to reach 10km on SMF

3.3V power supply voltage

Power dissipation < 3.5W

Operating Case Temperature: 0~70℃

Duplex LC connector

Application

100GBASE-LR4 Ethernet links

Data Center Intra Networking

Data Center Interconnect (DCI)

Selection Guide: 100G QSFP28 LR4 Transceiver (COB Packaging)

P/N Package Data Rate Interface Temp Reach Tx Optics Rx Optics Laser Lambda Detector Lambda

OPTR-MW53L-CC QSFP28 4*25Gb/s LC 0-70 10km DFB DML 1295.56nm/1300.05nm

1304.58nm/1309.14nm PIN 1295.56nm/1300.05nm

1304.58nm/1309.14nm
