Lr9130 Leadtek Sirf Star Iv Gps Module - Taiwan

Product Description

Features:

-SiRF StarIV ultra low power chipset

-Compact module size for easy integration : 24 x 20 x 2.9 mm

-I2C/SPI pins reserved for customizing special user applications (Default: UART)

-Fully utilized SS4 upgrade features Introduction

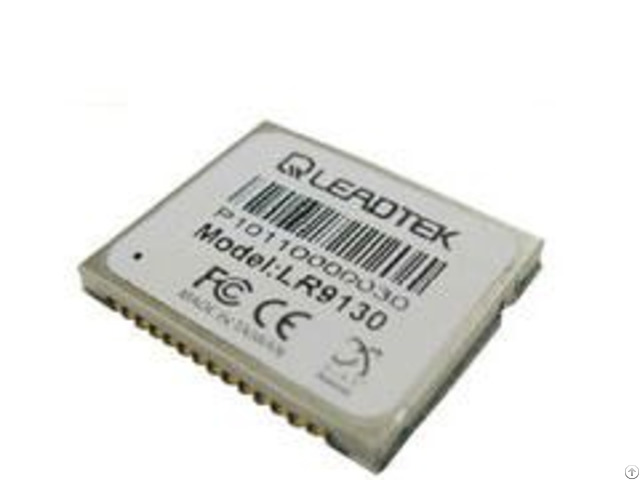

The Leadtek LR9130 GPS module is a high sensitivity, low power, Surface Mount Device (SMD) that can be compatible to LR9548 or fully utilized SiRFstarIV upgrade features.

This 48-channel global positioning system (GPS) receiver is designed for a wide range of OEM applications and is based on the GPS signal search capabilities of the SiRFstarIV GSD4e chipset, SiRF's newest chipset technology.

The LR9130 provides flexible I/O interfaces (UART is default, I2C and SPI by customer requirement).

The LR9130 is designed to allow quick and easy integration into GPS-related applications such as: - PDA, Pocket PC, Tablet and other computing devices

- Fleet Management /Asset Tracking

- AVL and Location-Based Services

- Hand-Held Device for Personal Positioning and Navigation

- All applications of battery drive device that needs lower power consumption

Product Feature

Performance

- Highest performance GPS PVT engine

- High acquisition sensitivity for fast TTFF

- Extremely low weak signal tracking sensitivity

- High jamming immunity

- Smallest footprint and total solution size

- Highest level of BOM integration

- Value added software enhancements

- Multimode A-GPS (Autonomous, MS-Based, and MS-Assisted) -Need operator support

- Embedded CGEE / SGEE (Need server support)

- SiRFGeoRecovTM Reverse EE

- Cold/Warm/Hot Start Time: 35/35/1 sec.

at open sky and stationary environments.

- Reacquisition Time: 0.1 second

- RF Metal Shield for best performance in noisy environments
