Gnss Engine Module Integrated Rtk Technology - Taiwan

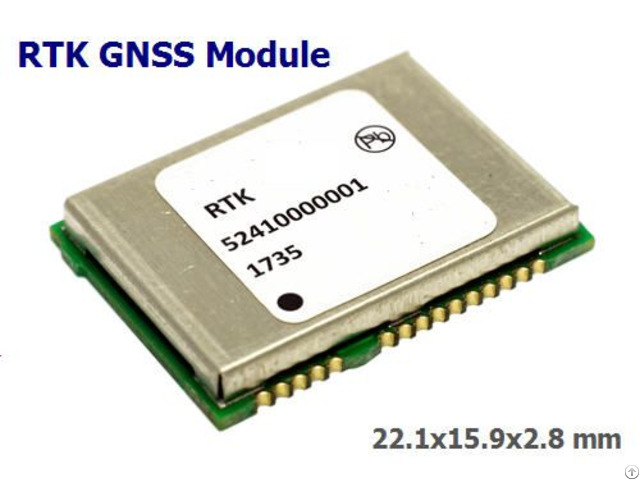

High precision RTK GNSS Module The RTK GNSS Module is based on high performance GNSS engine with integrated Real Time Kinematic (RTK) technology.

RTK GNSS Module provides GNSS position with sub-decimeter accuracy using phase measurements of GPS and GLONASS signals.

Integrated RTK technology introduces the concept of differential positioning of moving GNSS module with few cm-level accuracy - "Rover" (RTK GNSS Module) relative to the fixed GNSS module - "Reference station" (RTK GNSS Module or data from high-precision network).

The Reference station sends RTCM corrections to the Rover via a communication link (Wi-Fi, Cellular, UHF Radio) enabling the Rover to output its position relative to the Reference station down to centimeter-level precision.

RTK GNSS Module is ideal for those high precision applications where customer doesn't need to use excess functions of geodetic-class equipment for which he has to pay, such as: Precision Agriculture, UAV, Unmanned vehicles, Machine control, Monitoring systems of geodynamic processes.

Communication with the module is accomplished through a dual serial interface (DUART) that supports GSN binary, NMEA 0183 v4.10 and RTCM v3.2 data protocols.

Modules are offered in 22.1x15.9 mm 30-pad LCC package.

Integrated RTK technology and RTK GNSS module designed under support of Skolkovo foundation.

Key Features

• Integrated Real Time Kinematics (RTK) Engine

• Configurable operating modes: Reference station or Rover

• Compact, energy- and cost-efficient RTK module

• 1PPS output for precise timing applications

• Binary and NMEA data outputs

• RTCM v3.2 data input

• RTK positioning update rate up to 5 Hz

• Dimension : 22.1 x 15.9 x 2.8mm
