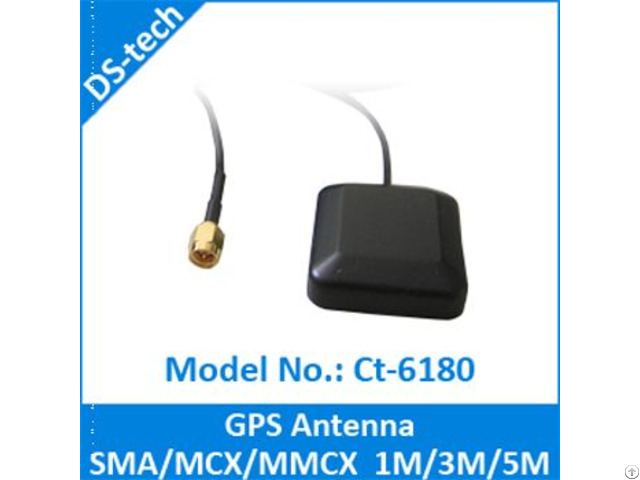

Ct 6180 Sma 180d 5m Vehicle Gps Antenna - Taiwan
price: contact company for price
This antenna system consists of two functional blocks, the LNA portion and the patch antenna.
‧ RF Cable : RG174, diameter 2.7±0.3mm, Black
‧ Cable Length : 1M/3M/5M±5cm
‧ RF Connector : SMA 180 deg (M)/SMA 90 deg (M)
‧ Frequency Range : 1575.42±1.023MHz
‧ Gain : At 90 deg 30±4.5 dBi - (cable loss) Note: 1
mounted on the the 60mm*60m ground plane
‧ Output : 50 Ohm
‧ VSWR : 2.0 Max
Company Contact:
- Posted By: Ding Sheng Electronics Ltd.
- Phone: 886222281577
- Address: No.178-1, Xinzhuang Rd., Xinzhuang district,, New Taipei City, Taiwan
- Email:
- Website: https://www.ds-tech.com.tw
Published date: November 12, 2018
- Business Description: Ding Sheng is one of the manufacturer and agent in Taiwan for GPS, GSM, 3G, 4G LTE NB-IoT and Bluetooth products .
We can provide different kind of solution to suit for customer's request.
Main Products:
GPS module, GPS Engine Board, GSM Module, GPS / GSM Antenna, GPS Mouse , GPS Devices, GPS Systems, GPS Receiver, Bluetooth Module, car tracking, AVL, Security system, GPS antenna, GSM antenna, OEM/ODM, 4G LTE module, 4G LTE antenna, 3G module, 3G Antenna, RF Connector, RF cable, SIM card holder, NB-IoT
