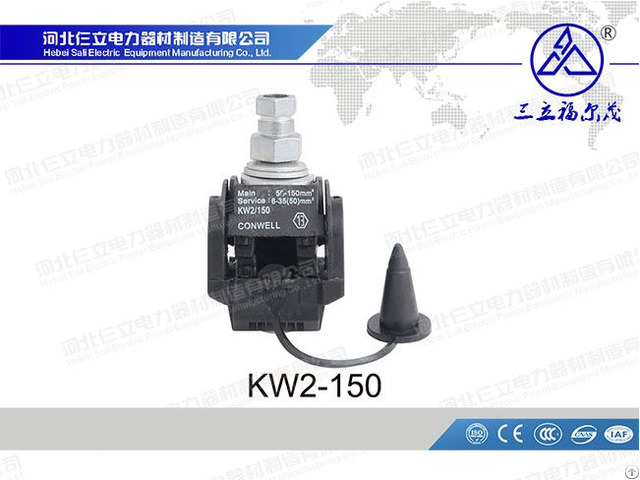

Insulation Piercing Connectors 0 6 1kv - China

General of insulation piercing connector(IPC)

1 - Piercing connector, simple installation, need not strip the cable coat.

2 - Moment nut, piercing pressure is constant, keep good electric connection and make no damage to lead.

3 - Self-seam frame, wetproof, waterproof, and anti-corrosion, extend the using life of insulated lead and connector.

4 - Adopted special connecting tablet, apply to joint of Cu(Al) and Cu(Al) or Cu and Al.

5 - Small electric connecting resistance, connecting resistance less than 2.5 times of the resistance of branch conductor with the same length.

in accordance with the standard DL/T765.1-2001.

6 - Special insulated case body, resistance to illumination and environmental aging, the insulation strength can up to 12kV.

7 - Arc surface design, apply to connection with the same (different) diameter, wide connection scope (0.75mm2-400mm2/td) Sali For Sale Piercing Connector, Metal Anchor Clamp, Insulation Piercing Connectors, Eye Bolt, Guy Attachment, Plastic Anchor Clamp etc.

Performance testing

1 - Mechanical performance: the grip force of the wire clamp is 1/10 bigger than the break force of the lead, It comply with GB2314-1997.

2 - Temperature rise performance: under the condition of big current, the temperature rise of connector is less than that of connection lead.

3 - Heat circle performance: conforms to GB/T2317.3-2000, the heat circle trial standard for electric fitting.

4 - Waterproof insulation performance: conforms to the relevant testing requirements in Part 2 of GB/T13140.4-1998.

5 - Resistance to corrosion performance: under the condition of SO2 and salt fog, it can do three times of fourteen days circle testing.

6 - Environmental aging performance: under the circumstance of ultraviolet, radiation, dry and moist, expose it with change of temperature and heat impulse for six weeks.

7 - Fire-proof performance: insulation material of the connector withstands glowing filament test.

Conform to the requirements in Chapter 4-10 of GB/T5169.4.
