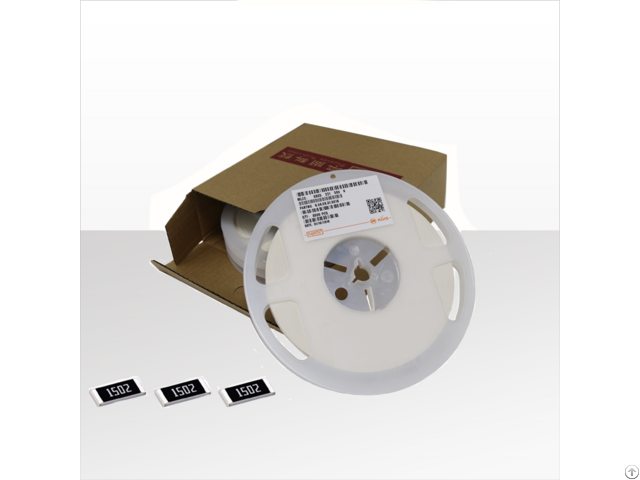

Precision Chip Resistor 0603 - China
price: 0.05 Dollar US$
Detailed description of precision chip resistors
Series: 0805
Resistance: 0R—500M 0Ω—22MΩ full range
Power: 1/20W—1W
Deviation: D=±0.5%, B=±0.1% Product features of precision chip resistors
1 - Resistance error is ±0.5%, temperature coefficient is ±50ppm/℃;
2 - Small size and light weight;
3 - Adapt to reflow soldering and wave soldering;
4 - Stable electrical performance and high reliability;
5 - The assembly cost is low, and it is matched with the automatic mounting equipment;
6 - High mechanical strength and superior high-frequency characteristics;
7 - Comply with ROHS directive requirements.
8 - Application areas include handheld products, computer products, industrial and medical instruments, etc.
Product parameters and characteristics of Pingshang Technology precision chip resistors
Inch (in) Metric (mm) Resistance Voltage Rated Power
0201 0603 0-47M 25V 1/20W
0402 1005 0-47M 50V 1/16W
0603 1608 0-47M 50V 1/16W, 1/10W
0805 2012 0-47M 150V 1/10W, 1/8W
1206 3216 0-47M 200V 1/8W, 1/4W
1210 3225 0-47M 200V 1/4W, 1/3W
1812 4832 0-47M 200V 1/2W
2010 5025 0-47M 200V 1/2W, 3/4W
2512 6432 0-47M 200V 1W Phone: +86 13622678159
WeChat: pskj13622678159
Company Contact:
- Phone: +86 0769-82308835
- Address: No. 14, Chuangye 1st Road, Helu Village, Baoshan Community, Huangjiang Town, Dongguan City, Guangdon, Dongguan City, Guangdong Province, China
- Email:
- Website: https://www.electronic7.com/
Published date: December 13, 2021
- Business Description: Main products: chip capacitors, chip resistors, chip inductors, magnetic beads, chip electrolytic capacitors, chip tantalum capacitors, chip diodes, chip transistors, MOS tubes.
