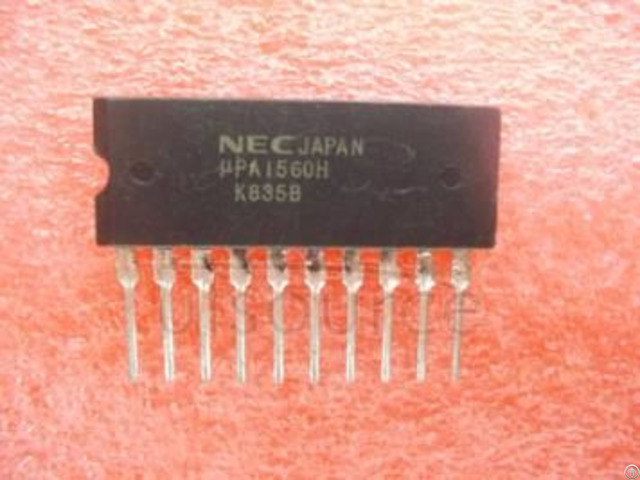

Utsource Electronic Components Upa1560h - USA
price: 0.96 Dollar US$
1 - Description
The μPA1560 is N-Channel Power MOS FET Array that built in 4 circuits designed for solenoid, motor and lamp driver.
It is compound field effect power transistor The diode connected between the gate and source of the transistor serves as a protector against ESD.
When this device actually used, an additional protection circuit is externally required if a voltage exceeding the rated voltage may be applied to this device.
2 - Features
>Full mold package with 4 circuits
>4 V driving is possible
>Low on-state resistance
>RDS(on)1 = 165 m? MAX.
(VGS = 10 V, I = 1.5 A)
>RDS(on)2 = 200 m? MAX.
(VGS = 4 V, I = 1.5 A)
>Low input capacitance Ciss = 600 pF TYP
