Type Nb902 Relay - China

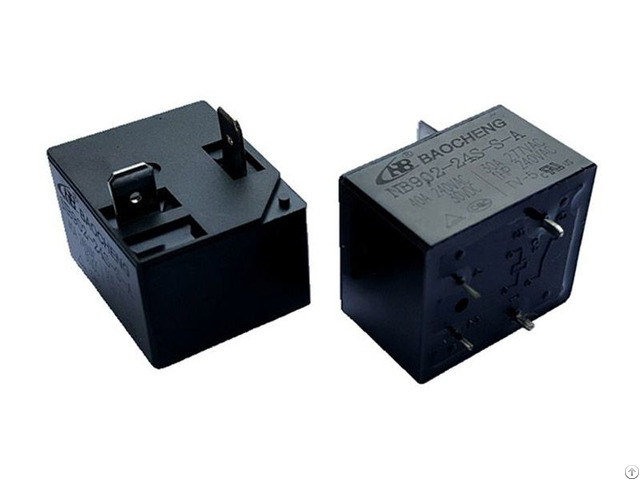

RELAY TYPE: NB902 Relay

Baocheng export excellent power relay, telecom relays and automotive relays.

40A switching capability

THT&QT terminal types for heavy duty

Dielectric strength between coil and contact 2.5KV, max.

4KV

NO, NC, NO&NC contact form available

Option for sealed and flux-tight type

UL insulation grade: Class F

Environmental friendly product

Outline dimension: 32 x 27.2 x 28mm & 32 x 27.2 x

20.5mm

Baocheng supply electromagnetic relays, power relays, telecom relays and automotive relays.

We wish to hand in hand with global customers to pursuit excellent quality and cast perfect products to share happiness life bring by technology.

Contact Ratings

Contact Form: 1A, 1B, 1C

Contact Material: AgCdO, AgSnO2

Contact Load Capacity: 1A: 40A/240VAC, 30VDC 1B: 40A/240VAC, 30VDC 1C: 40A/240VAC, 30VDC

Max.

Switching Current: 40A

Max.

Switching Power: 9600VA/1200W

Mechanical Endurance: 1*107OPS

Electrical Endurance: 1*105OPS Technical Ratings

Insulation Resistance: 1000MΩ

Dielectric Strength(Between coil&contact): 2500VAC

Operate Time (Max.

): 15ms

Release Time (Max.

): 10ms

Ambient Temperature: -40℃ ~ 85℃/105℃

Terminal Type: THT & QT Coil Ratings

Nominal Voltage (5-110)VDC

Nominal Coil Power 0.9W
