Type Gp Relay - China

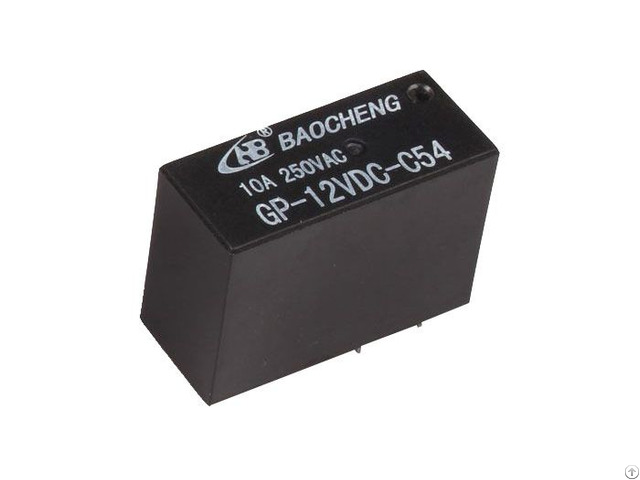

RELAY TYPE: GP Relay

16A switching capability

Standard PCB layout

Dielectric strength between coil and contact 5KV

Various of contact forms available

Option for sealed and flux-tight type

UL insulation grade: Class F

Environmental friendly product

Power Relays, High Power Relays, Power Relays Factory, China

Contact Ratings

Contact Form: 1A, 1C; 2A, 2C

Contact Material: AgCdO, AgSnO2

Contact Load Capacity: 1A, 1C: 16A/250VAC 2A, 2C: 5A/250VAC

Max.

Switching Current: 16A

Max.

Switching Power: 4000VA

Mechanical Endurance: 1*107OPS

Electrical Endurance: 1*105OPS

Outline dimension: 29 x 12.6 x 20.6mm Technical Ratings

Insulation Resistance: 1000MΩ

Dielectric Strength(Between coil&contact): 5000VAC

Operate Time (Max.

): 15ms

Release Time (Max.

): 5ms

Ambient Temperature: -40℃ ~ 70℃

Terminal Type: THT Coil Ratings

Nominal Voltage (5-48)VDC

Nominal Coil Power 0.54W, 0.72W
