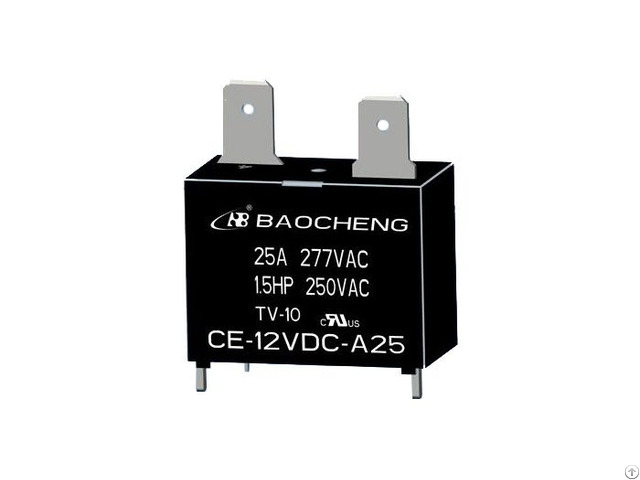

Type Ce Relay - China

Baocheng export excellent power relay, telecom relays and automotive relays.

25A switching capability

THT&QT terminals layout available

Ideal for motor load switching

One group of NO contact form

Option for sealed and dust-proof type

UL insulation grade: Class F

Environmental friendly product

Outline dimension: 30.5 x 16 x 23.5mm & 30.5 x 16 x

Power Relays, Telecom Relays, Automotive Relays, Latching Relays For Sale 26.5mm

Contact Ratings

Contact Form: 1A

Contact Material: AgSnO2

Contact Load Capacity: 1A: 25A/250VAC, 277VAC; 1.5HP 250VAC; TV-10

Max.

Switching Current: 25A

Max.

Switching Power: 6250VA

Mechanical Endurance: 1*107OPS

Electrical Endurance: 1*105OPS Technical Ratings

Insulation Resistance: 1000MΩ

Dielectric Strength(Between coil&contact): 4500VAC

Operate Time (Max.

): 20ms

Release Time (Max.

): 10ms

Ambient Temperature: -40℃ ~ 85℃

Terminal Type: THT & QT Coil Ratings

Nominal Voltage (5-48)VDC

Nominal Coil Power 0.9W
