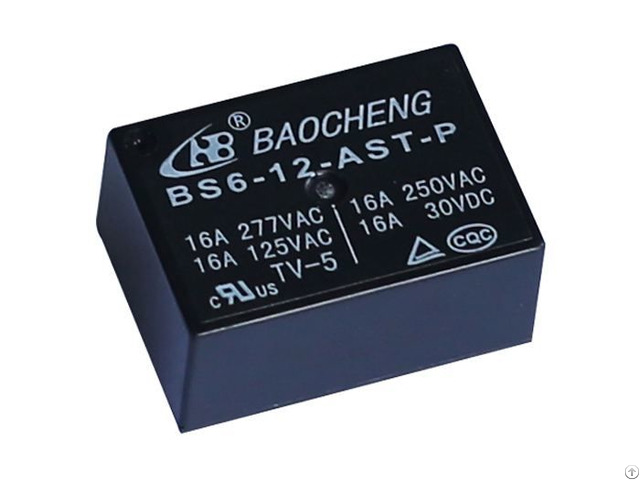

Type Bs6 Relay - China

Baocheng export excellent power relay, telecom relays and automotive relays.

16A High load capability

THT terminal types for PCB layout

High sensitivity: 200mW

One group of NO contact form

Low height, flat construction

Option for sealed and flux-tight type

UL insulation grade: Class F

Environmental friendly product

Outline dimension: 23 x 16.2 x 10.6mm

Power Relays, Telecom Relays, Automotive Relays, Latching Relays For Sale

Contact Ratings

Contact Form: 1A

Contact Material: AgCdO, AgSnO2

Contact Load Capacity: 1A: 16A/250VAC, 30VDC;

12A/250VAC, 30VDC; TV-5 125VAC

Max.

Switching Current: 16A

Max.

Switching Power: 4000VA/480W

Mechanical Endurance: 1*107OPS

Electrical Endurance: 1*105OPS Technical Ratings

Insulation Resistance: 1000MΩ

Dielectric Strength(Between coil&contact): 2500VAC

Operate Time (Max.

): 15ms

Terminal Type: THT Coil Ratings

Nominal Voltage (5-48)VDC

Nominal Coil Power 0.2W, 0.4W
