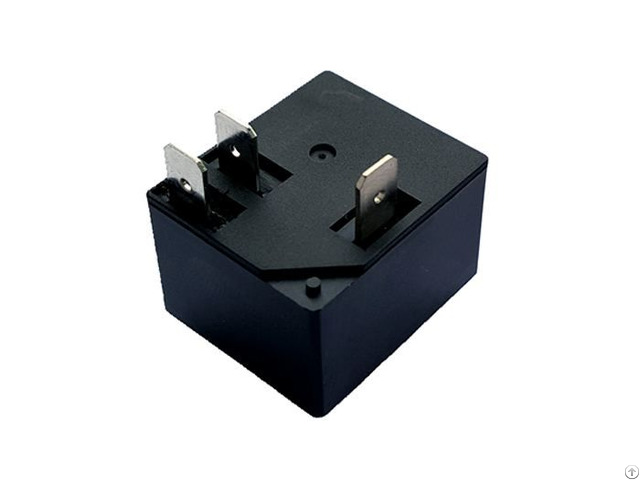

Nb902e Relay - China

Baocheng export excellent power relay, telecom relays and automotive relays.

30A switching capability

THT&QT terminal types for heavy duty

Dielectric strength between coil and contact 2.5KV, max.

4KV

NO, NC, NO&NC contact form available

Option for sealed and flux-tight type

UL insulation grade: Class F

Environmental friendly product

Outline dimension: 32 x 27.2 x 28mm & 32 x 27.2 x

20.5mm

Baocheng produces Relay Switch, Relay Electronics, Relay Coil and Basic Relay.

With modern production workshop more than 5, 000 m2, our factory absorb the internal and external advanced technology, introduce and develop over 10 automatic production lines.

Contact Ratings

Contact Form: 1A, 1B, 1C

Contact Material: AgCdO, AgSnO2

Contact Load Capacity: 1A: 30A/240VAC, 30VDC 1B: 20A/240VAC, 30VDC 1C: 30A/240VAC, 30VDC

Max.

Switching Current: 30A

Max.

Switching Power: 7200VA/900W

Mechanical Endurance: 1*107OPS

Electrical Endurance: 1*105OPS Technical Ratings

Insulation Resistance: 1000MΩ

Dielectric Strength(Between coil&contact): 2500VAC

Operate Time (Max.

): 15ms

Release Time (Max.

): 10ms

Ambient Temperature: -40℃ ~ 85℃/105℃

Terminal Type: THT & QT Coil Ratings

Nominal Voltage (5-110)VDC

Nominal Coil Power 0.9W
