M4s Relay China - China

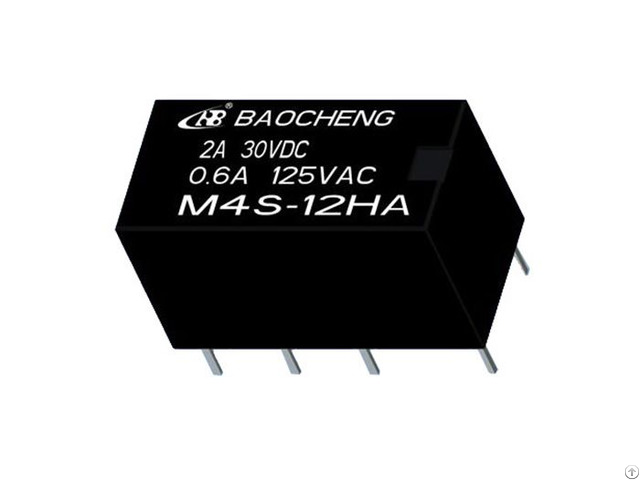

RELAY TYPE: M4S Relay

Baocheng export excellent power relay, telecom relays and automotive relays.

Bifurcated contacts form

High switching capacity: 125VAC/60W

DIP structure, matching 16 pin IC socket

Epoxy sealed for automatic-wave soldering and cleaning

Environmental friendly product

Outline dimension: 20.2 x 10 x 11.5mm

Contact Ratings

Contact Form: 2C

Contact Material: AgNi (Gold Clad)

Contact Load Capacity: 0.6A, 1A/125VAC, 2A/30VDC

Max.

Switching Current: 2A

Max.

Switching Power: 125VA/60W

Mechanical Endurance: 1*107OPS

Electrical Endurance: 1*105OPS

Telecom Relays, Telecom Relays 19F, Telecom Relays Exporter, China

Technical Ratings

Insulation Resistance: 1000MΩ

Dielectric Strength(Between coil&contact): 1000VAC

Operate Time (Max.

): 7ms

Release Time (Max.

): 4ms

Ambient Temperature: -30℃ ~ 70℃

Terminal Type: DIP
