Isolated Wide Input Voltage 300w 400w Dc Converters - China

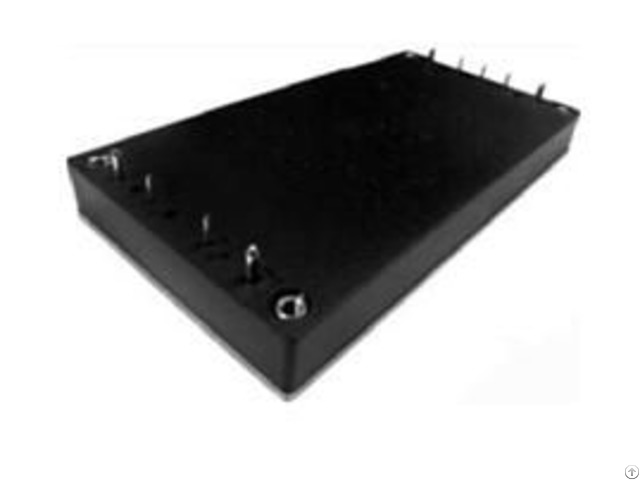

The rated output power of TP300DF converters is 300W, TP400DF converters is 400W, the outline dimensions is 116.84*61*12.7mm, with 2: 1 input voltage range, the voltage range is 18V-36V, 36V-72V.

The accuracy of the converter can reach ±1%, it can be widely used in telecommunications, railway transportation, instrument and etc.

300W 400W output power 2: 1 input voltage range Input under voltage protection standard package Fixed switching frequency Super capability with capacitive load Long term short-circuit protection Operating temperature: -40℃to 85℃ RoHs compliance Part Number Input Voltage Output voltage(VDC) Voltage(VDC) Rated Range values TP300DF24S12 24(2: 1) 18-36 12

TP300DF24S24 24(2: 1) 18-36 24

TP300DF48S12 48(2: 1) 36-72 12

TP300DF48S24 48(2: 1) 36-72 24

TP400DF24S12 24(2: 1) 18-36 12

TP400DF24S24 24(2: 1) 18-36 24

TP400DF48S12 48(2: 1) 36-72 12

TP400DF48S24 48(2: 1) 36-72 24

Company Contact:

• Posted By: TOPPOWER

• Phone: 862062162688-809

• Address: Building No.3 ,Rui Fa Road No.15,, Guangzhou , Guangdong , China

• Email:

• Website: https://en.gztoppower.com

• Business Description: Toppower is a professional manufacturing enterprise of DC DC converters.

  We focus on miniature DC DC converters researches, produces and markets,

  Our products have been used in many fields; such as: Industrial Control

  System, Power system, Apparatus and Instrument, Medical facilities, Rail

  transit system, Telecommunication Equipment, Security and Protection

  Equipment and Military Industrial System etc.

  Toppower owns an outstanding researching team.

  The products are 100% inspected and tested automatically by the advanced testing equipment.

  The unique product design, manufacturing process and equipment make our products with high efficiency and very good reliabilities.

  All DC DC converters are made with high quality spare parts and UL 94V 0 package material from the international prestigious suppliers.

  As well, the products meet ROHS requirement and covers 40+ series with thousands of variants from 1 to 50W for your choice.

  Our team targets to support you with professional products and service.

  We also have stocks for the popular variants so as to meet your emergency needs on time.

  we,TOPPOWER can produce:

  0.1W-400W DC-DC converters,1W-30W AC-DC converters,(SIP/DIP/SMD)

  15W-1200W Enclosed /Open frame/DIN RAIL type AC-DC Switching Power supply,

  TOPPOWER quality : ISO9001: 2015, IATF16949: 2016

  Guangzhou Top Power electronics Technology Co., Ltd
