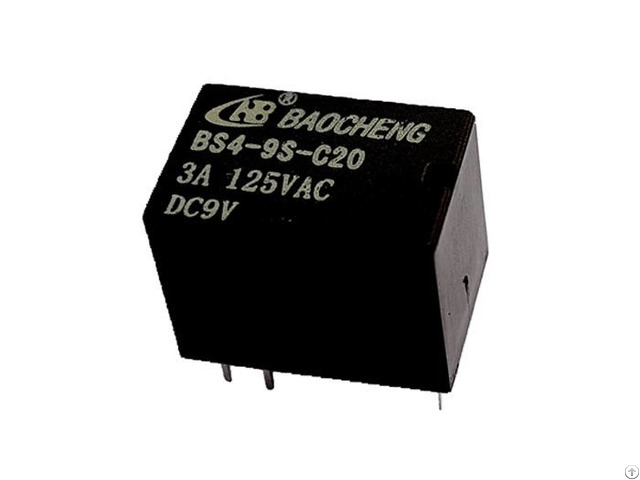

Bs4 Relay China - China

Baocheng export excellent power relay, telecom relays and automotive relays.

5A switching capability

Standard PCB layout

Dielectric strength between coil and contact 1KV

NO, NC, NO&NC contact form available

UL insulation grade: Class F

Environmental friendly product

Outline dimension: 15.5 x 11 x 11.5mm

Power Relays, Automotive Relays, Latching Relays Manufacturer & Supplier Contact Ratings

Contact Form: 1A, 1B, 1C

Contact Material: AgNi

Contact Load Capacity: 1A, 2A, 3A, 5A/125VAC, 30VDC

Max.

Switching Current: 5A

Max.

Switching Power: 625VA/150W

Mechanical Endurance: 1*107OPS

Electrical Endurance: 1*105OPS Technical Ratings

Insulation Resistance: 100MΩ

Dielectric Strength(Between coil&contact): 1000VAC

Operate Time (Max.

): 10ms

Release Time (Max.

): 5ms

Ambient Temperature: -30℃ ~ 70℃

Terminal Type: DIP Coil Ratings

Nominal Voltage (3-24)VDC

Nominal Coil Power 0.2W, 0.36W, 0.45W
