792w Wide Input Ac Dc Switching Power Supply - China

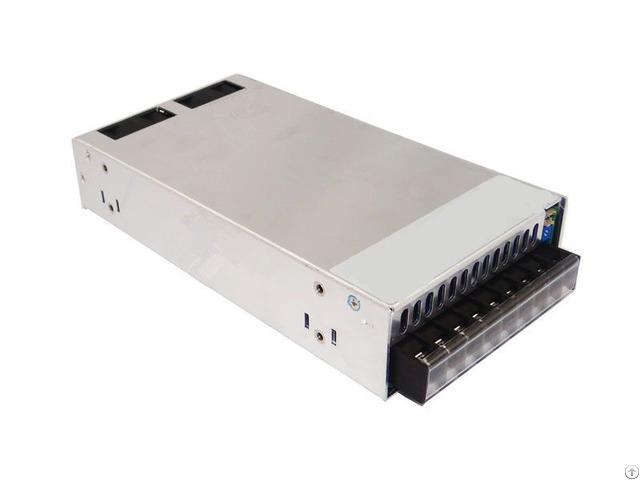

The rated output power of TPC/PDF-800-XS series is792W, input voltage range：90-264VAC, output voltage: 24V, 36V, 48V, High reliability, precision, effificency, ultra-small size, no external heat sink required, stable output voltage and etc, with over current protection, short circuit, overloadprotection, Widely used in telecommunications, industrial control, instrument, data acquisition, signal control, New Energy, Security, and other electronic systems.

AC input ：90VAC-264VAC short circuit, overload, over-voltage protection Operating temperature：-30℃~70â„ ƒ RoHS complaint High reliability, effificency, 100% full load burn-in test Built-in active PFC function, PF>0.96

capacitors Build in DC OK signal Using ZVS technology to reduce power dissipation Built in AC inrush current limiting circuit(<20A) 1 U low profile, 41mm Built in Fan speed control Built in Remote Sense Function SELECTION GUIDE

Part Number Input Output Efficiency

@25℃, (Typ)% Volatge(VAC) Voltage(VDC) Pre-set voltage

@25℃(V) Rated current(A) Current range(A) Rated power(W) Rated Range values TPC/PDF-800-24S 220 90-264 24 24.00-24.10 33 0-33 792 ≥89

TPC/PDF-800-36S 220 90-264 36 35.75-36.25 22 0-22 792 ≥89

TPC/PDF-800-48S 220 90-264 48 48.00-48.10 16.5 0-16.5 792 ≥89 All specifications typical at TA=25°C, nominal input voltage and rated output current unless otherwise specified.

Company Contact:

• Posted By: TOPPOWER

• Phone: 862062162688-809

• Address: Building No.3 ,Rui Fa Road No.15,, Guangzhou , Guangdong , China

• Email:

• Website: https://en.gztoppower.com

• Business Description: Toppower is a professional manufacturing enterprise of DC DC converters.

  We focus on miniature DC DC converters researches, produces and markets,

  Our products have been used in many fields; such as: Industrial Control

  System, Power system, Apparatus and Instrument, Medical facilities, Rail

  transit system, Telecommunication Equipment, Security and Protection

  Equipment and Military Industrial System etc.

  Toppower owns an outstanding researching team.

  The products are 100% inspected and tested automatically by the advanced testing equipment.

  The unique product design, manufacturing process and equipment make our products with high efficiency and very good reliabilities.

  All DC DC converters are made with high quality spare parts and UL 94V 0 package material from the international prestigious suppliers.

  As well, the products meet ROHS requirement and covers 40+ series with thousands of variants from 1 to 50W for your choice.

  Our team targets to support you with professional products and service.

  We also have stocks for the popular variants so as to meet your emergency needs on time.

  we,TOPPOWER can produce:

  0.1W-400W DC-DC converters,1W-30W AC-DC converters,(SIP/DIP/SMD)

  15W-1200W Enclosed /Open frame/DIN RAIL type AC-DC Switching Power supply,

  TOPPOWER quality : ISO9001: 2015, IATF16949: 2016

  Guangzhou Top Power electronics Technology Co., Ltd
