Ykjd 8029ss J1b1211ccd 1 Port 100base T Through Hole Rj45 Jacks With Magnetics - China
price: 1.00 Dollar US$

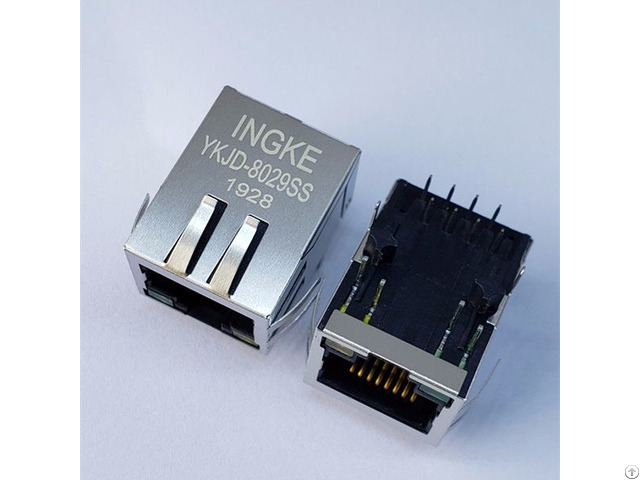

Ingke YKJD-8029SS Direct Substitute J1B1211CCD 1 Port 100BASE-T Through Hole RJ45 Jacks With Magnetics Part Number: J1B1211CCD
Made in China: YKJD-8029SS
Original Manufacturer: Ingke Technology
Supply Ability: 5500K-PCS/Month
Product Category: Modular Connectors / Ethernet Connectors
Packaging: Tray
Connector Type: RJ45
Number of Ports: 1
Number of Rows: 1
Applications: 10/100 Base-T, AutoMDIX
Mounting Type: Through Hole
Orientation: 90°Angle (Right)
Termination: Solder
LED Color: Green - Yellow
Number of Cores per Jack: 4
Shielding: Shielded, EMI Finger
Features: Board Guide
Tab Direction: Down
Contact Material: Phosphor Bronze
Contact Finish: Gold
Operating Temperature: -40℃~85℃
Contact Finish Thickness: 30µin (0.76µm)
Flammability Rating: UL 94 V-0
Shield Material: Copper Ally
Housing Material: Thermoplastic
Company Contact:
- Posted By: Ingke Technology Co.,Ltd
- Phone: 86 (755) 3283-5625
- Address: No.2106,Sanhe Building,Longgang Zone, Shenzhen , Guangdong , China
- Email:
- Website: http://ingketech.net
Published date: July 15, 2019
- Business Description: Ingke Technology specializes in producing 10/100/1000/2.5G/5G/10G Base-T Integrated RJ45 Jacks, since its establishment1993, with technology as dependence and the market as direction, we have developed to be a competitive high-tech enterprise and a leading manufacturer of connectors.
Partnered with the global leaders in these markets, we continue to develop new products to enable high-speed communication.
Now we have passed the ISO14001 Environment Management System certification and our parts are all ROHS, CE, UL and SGS parts.
Our products are widely used in telecommunications, data communications, consumer electronic , computer, industrialand medical markets, such as HUB, SWITCH, IP Phone, Set-Top Box, Smart Home, Embedded System, Networking Camera etc.
