Ykgu 86149nl 100 Percent Cross Jg0 0026nl - China

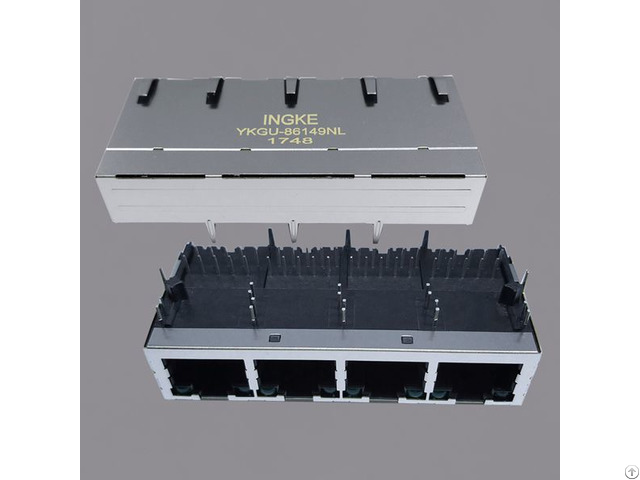

Ingke YKGU-86149NL 100% cross JG0-0026NL 1X4 Port RJ45 Magnetic Modular Jacks Part Number : JG0-0026NL Made in China: YKGU-86149NL

Original Manufacturer: Ingke Technology

Supply Ability: 5500K-PCS/Month

Product Category: Modular Connectors / Ethernet Connectors

Packaging : Tray

Connector Type: RJ45

Number of Ports : 4

Number of Rows : 1

Applications : 10/100/1000 Base-T, AutoMDIX

Mounting Type : Through Hole

Orientation: 90° Angle (Right)

Termination : Solder

LED Color: Green - Green

Number of Cores per Jack : 8

Shielding : Shielded, EMI Finger

Features: Board Guide

Tab Direction : Up

Contact Material : Phosphor Bronze

Contact Finish : Gold

Operating Temperature : -40℃~85℃

Contact Finish Thickness : 30µin (0.76µm)

Flammability Rating: UL 94 V-0

Shield Material : Copper Ally

Housing Material : Thermoplastic Ingke Technology Mass production of the following models;JP011821U JP026821U JV006I21 JV026I21 J0C-0003NL JK0-0018NL JK0-0026NL JK0-0014NL

JK0-0016NL JK0-0017NL JK0-0020NL JK0-0025NL JC0-0063NL JG0-0045NL JG0-0051NL JC0-0019NL JK0-0044NL JK0-0036NL J0B-0368NL J0B-0386NL JC0-0131NL JX20-0115NL J0B-0366NL J20-0115NL JX20-0116NL JC0-0132NL J20-0116NL JC0-3022NL JC0-0319NL JC0-0133NL J0B-3448NL J00-0065

J0011D21 J0026D21B J1012F21C J8064D628A J8064D648A J8064D668A J20-0013 J20-0014 JG0-0032 JK0-0014 JK0-0016 JK0-0017 JG0-0023 JG0-0025 JC0-0031 JC0-0032 JC0-0033 JW0-0009 J00-0025 J00-0045 J00-0046 J00-0061 J00-0062 J00-0064 J0006D01B J0011D01 J0011D21E J0012D21 J0024D21

J0024D21B J0026D21FNL JP006821UNL J0026D01ENL JXR0-0015NLT JXR1-0001NL JXR1-0001NLT JXR1-0005NLT JXR0-0011NLT JXR0-0001NLT JXR0-0005NLT J3018G21KNLT J3018G21KNL JXR1-0011NLT JXR1-0015NLT J3026G21DNLT JX30-0005NLT JKM-0003NL JKM-0004NL JKM-0013NL JK0-0144NL JX0026D21NL JXKM-0004NL JX0011D21BNL J3011G21WNL JX0026D21BNL JX30-0005NL JT4-1121HL JK0-0116NL JK0-0144BNL JXK0-0136NL JK0-0177NL
