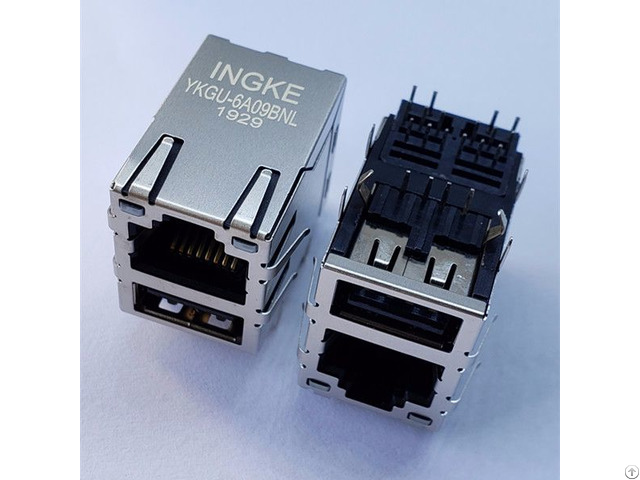

Ykgu 6a09bnl 0821 1x1t 43 F Gigabit Rj45 With Usb A Connector Integrated Magnetics - China

Ingke YKGU-6A09BNL Direct Substitute 0821-1X1T-43-F 1 Port 1000 Base-T Through Hole RJ45 with USB A Connector with Integrated Magnetics Bel Part Number: 0821-1X1T-43-F

Made in China: YKGU-6A09BNL

Original Manufacturer: Ingke Technology

Supply Ability: 5500K-PCS/Month

Product Category: Modular Connectors / Ethernet Connectors

Packaging: Tray

Connector Type: RJ45 with USB A

Number of Ports: 1

Number of Rows: 1

Applications: 10/100/10 00 Base-T, AutoMDIX

Mounting Type: Through Hole

Orientation: 90°Angle( Right)

Termination: Solder

LED Color: Green, Orange - Yellow

Number of Cores per Jack: 8

Shielding: Shielded, EMI Finger

Features: Board Lock

Tab Direction: Up

Contact Material: Phosphor Bronze

Contact Finish: Gold

Operating Temperature: -40℃~85℃

Flammability Rating: UL 94 V-0

Contact Finish Thickness: 30µin (0.76µm)

Shield Material: Copper Alloy

Housing Material: Thermoplastic Ingke Technology Mass production of the following models;0833-2X8R-33-F 0843-2C1T-33-F C850-2G8R-M9 0833-2X8R-54-F 0863-2X5R-54 0817-1D1T-21-F L811-1X1T-06-F 0843-2B1T-33-F 0833-2X1T-33-F 0817-1A1T-11-F 0879-2C8R-54 C850-2G8R-54 C850-2G6R-54 0879-2C6R-54 0863-2X8R-54-F 0854-2X6R-GK-F 0817-1AX1-11-F 0833-2X4R-33-F 0833-2X6R-33-F
