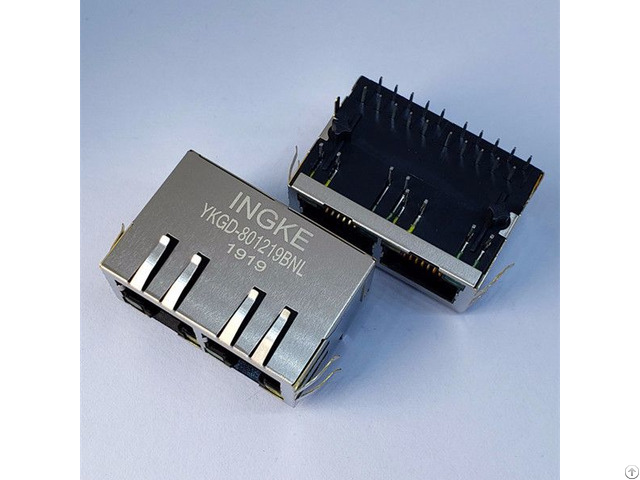

Ykgd 801219bnl 7499121211 2 Port Gigabit Through Hole Rj45 Lan With Transformer - China

Ingke YKGD-801219BNL 100% Cross 7499121211 2 Port Gigabit Through Hole RJ45 LAN with Transformer Part Number: 7499121211

Made in China: YKGD-801219BNL

Original Manufacturer: Ingke Technology

Supply Ability: 5500K-PCS/Month

Product Category: Modular Connectors / Ethernet Connectors

Packaging: Tray

Connector Type: RJ45

Number of Ports: 2

Number of Rows: 1

Applications: 10/100/10 00 Base-T, AutoMDIX

Mounting Type: Through Hole

Orientation: 90°Angle (Right)

Termination: Solder

LED Color: Green - Yellow

Number of Cores per Jack: 8

Shielding: Shielded, EMI Finger

Features: Board Guide

Tab Direction: Down

Contact Material: Phosphor Bronze

Contact Finish: Gold

Operating Temperature: -40℃~85℃

Flammability Rating: UL 94 V-0

Contact Finish Thickness: 30µin (0.76µm)

Shield Material: Copper Alloy

Housing Material: Thermoplastic Ingke Technology Mass production of the following models;74990101212 7499010122 7498011122R 7499010211A 74990111217 74990111215 7499010441 74990112116A 7498011211 7499110122 7499210124A 7499021125 7499411122 7499511440 7499511611A 7499011001A 7499011002 7499111001A 7499110124 7499121211 7499010003A 7499010126A 7498210220A
