We 7499021125 Ykjd 811229bnl Magnetic Modular Rj45 Jacks 2 Port Through Hole 10 100 Base T Automdix - China
price: 0.50 Dollar US$

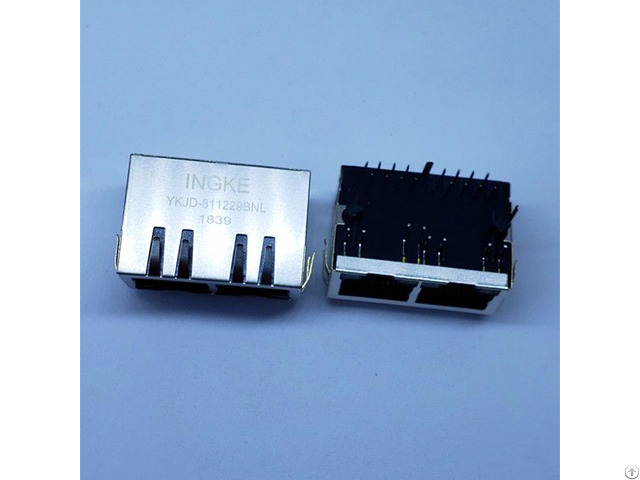

Ingke YKJD-811229BNL 100% cross 7499021125 Magnetic Modular RJ45 Jacks 2 Port Through Hole 10/100 Base-T, AutoMDIX Part Number : 7499021125
Made in China: YKJD-811229BNL
Original Manufacturer: Ingke Technology
Supply Ability: 5500K-PCS/Month
Product Category: Modular Connectors / Ethernet Connectors
Packaging : Tray
Connector Type: RJ45
Number of Ports : 2
Number of Rows : 1
Applications : 10/100 Base-T, AutoMDIX
Mounting Type : Through Hole
Orientation: 90° Angle (Right)
Termination : Solder
LED Color: Yellow - Green
Number of Cores per Jack : 4
Shielding : Shielded, EMI Finger
Features: Board Guide
Tab Direction : Down
Contact Material : Copper Alloy
Contact Finish : Gold
Operating Temperature : -40℃~85℃
Contact Finish Thickness : 30µin (0.76µm)
Flammability Rating: UL 94 V-0
Shield Material : Copper Ally
Housing Material : Thermoplastic Ingke Technology Mass production of the following models;
74990100011A 7499011222A 7499010211A 74990111217 7499010441 74990112116A 7499410213 7499111001A 7498111120R 7499110122 7498011211 7499021125 74990111215 7499211121A 7499210121A 7499211125 7498111001 7498111001 7498111001 7499111446 7499111221A 7499111447 7499151120 7497110616 7499010121A 7499011121A
Company Contact:
- Posted By: Ingke Technology Co.,Ltd
- Phone: 86 (755) 3283-5625
- Address: No.2106,Sanhe Building,Longgang Zone, Shenzhen , Guangdong , China
- Email:
- Website: http://ingketech.net
Published date: October 8, 2018
- Business Description: Ingke Technology specializes in producing 10/100/1000/2.5G/5G/10G Base-T Integrated RJ45 Jacks, since its establishment1993, with technology as dependence and the market as direction, we have developed to be a competitive high-tech enterprise and a leading manufacturer of connectors.
Partnered with the global leaders in these markets, we continue to develop new products to enable high-speed communication.
Now we have passed the ISO14001 Environment Management System certification and our parts are all ROHS, CE, UL and SGS parts.
Our products are widely used in telecommunications, data communications, consumer electronic , computer, industrialand medical markets, such as HUB, SWITCH, IP Phone, Set-Top Box, Smart Home, Embedded System, Networking Camera etc.
Our Products:
- a60 113 331p432 edac 1 port rj45 magnetic jack connector
- we 7499111446 gigabit magnetic rj45 connectors
- gigabit 2250022 4 magnetic rj45 jacks
- trp 6605444 6 gigabit magnetic rj45 jacks
- si 61031 f gigabit rj45 modular jack
