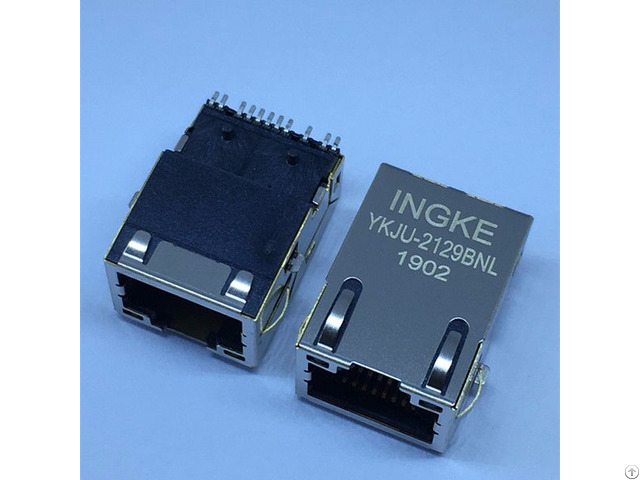

We 7498011122 Ykju 2129bnl 100 Base T Smt Rj45 Magnetic Jack Connectors - China

Ingke YKJU-2129BNL 100% cross 7498011122 100 Base-T SMT RJ45 Magnetic Jack Connectors Part Number: 7498011122

Made in China: YKJU-2129BNL

Original Manufacturer: Ingke Technology

Supply Ability: 5500K-PCS/Month

Product Category: Modular Connectors / Ethernet Connectors

Packaging: Tray

Connector Type: RJ45

Number of Ports: 1

Number of Rows: 1

Applications: 10/100 Base-T, AutoMDIX

Mounting Type: Board Edge, Surface Mount

Orientation: 90° Angle (Right)

Termination: Solder

LED Color: Yellow - Green

Number of Cores per Jack: 4

Shielding: Shielded, EMI Finger

Features: Board Guide

Tab Direction: Up

Contact Material: Copper Alloy

Contact Finish: Gold

Operating Temperature: -40℃~85℃

Contact Finish Thickness: 30µin (0.76µm)

Flammability Rating: UL 94 V-0

Shield Material: Copper Ally

Housing Material: Thermoplastic Ingke Technology Mass production of the following models;7498011121 7499031211 7499211003 7499411001 7499111614 7499311001 7499511001 7499511611 74990110010 74990111211 7498210003 7499031001A 7499011002A 7499111613 7498011002 7499210001A 7499021121 7499111005 7499511001A 7499211123A
