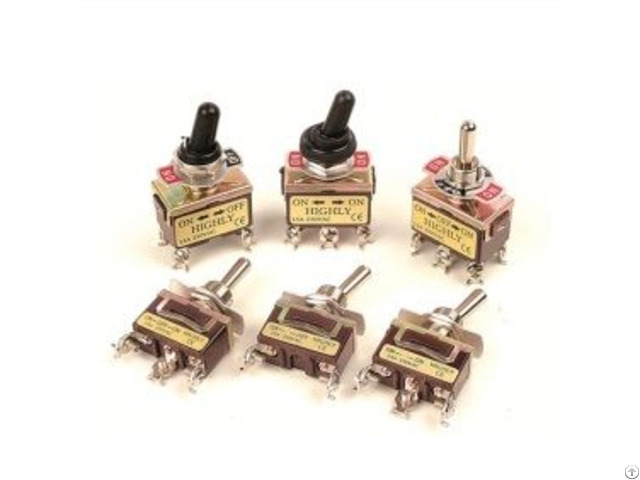

Toggle Switch T Series - Taiwan
price: contact company for price
Feature:
1 - Several actuator type options.
2 - Easy to identify by colorful actuator cover options.
3 - Push button available.
4 - UL approval.
Specifications:
HIGHLY Toggle switch pass UL, 3C approval, and other safety regulations certification, add button function.
Several handles, color waterproof cover, marking plastic cover option for choice.
Mainly used in automobiles, ship equipment, network communication, industrial instruments, medical equipment, etc.
1 - Item: Standard
2 - Rating: 10A 250VAC / 15A 125VAC / 15A 250VAC / 20A 125VAC / UL61058
3 - Contact Resistance: 25mΩ max.
(initial)
4 - Dielectric Strength: AC 1000V (50/60 Hz for 1 minute)
5 - Insulation Resistance: 100MΩ min.
(at 500VDC)
6 - Electrically Life: 30, 000 Cycle min
7 - Mechanically Life: 100, 000 Cycle min
Company Contact:
- Posted By: Highly Electric Co., Ltd.
- Phone: 886-2-82261490
- Address: Fl. 10-3, No.738, Chung-Cheng Road, Zhonghe District,, New Taipei City, Taiwan , Taiwan
- Email:
- Website: https://www.highly-elec.com
Published date: February 8, 2022
- Business Description: Highly Electric Co.
products including illuminated switch, safety limit switch, micro switch, IP67 waterproof switch, toggle switch, rocker switch, and customized switch are all with certified quality approval and earn customer's admiration.
