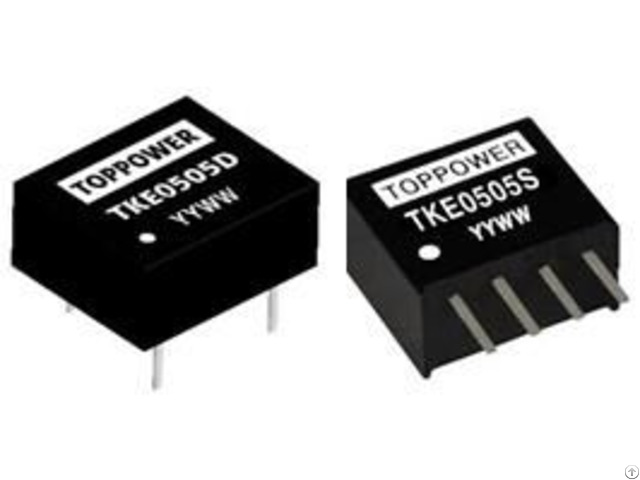

TKE0505S isolated 1W DC/DC converters in a SIP

part No: TKE0505S

power: 1W

package: SIP

Input voltage: 5V

Output voltage: 5V

The TKE series are miniature, isolated 1W DC/DC converters in a SIP and DIP package.

They offer the ideal solution in many space critical applications for board level power distribution.

The internal SMD construction makes it possible to offer a product with high performance at low cost.

The series offers smaller size, improved efficiency, lower output ripple noise and 3KVDC isolation.

RoHS compliant Sub-Miniature SIP & DIP styles 3KVDC isolation

UL 94V-0 package material Operating temperature: -40C to 85C Power density 2.09W/cm3

Footprint at 0.69cm2 Industry standard pinout

Parameter Conditions Min.

Typ.

Max.

Units

Voltage range 5V input 4.5 5.0 5.5 V

Short-circuit protection 1 second

Lead temperature 1.5mm from case for 10 seconds 300

Internal power dissipation 520mW

Input voltage Vin, TKE05 7V

Parameter Conditions Min.

Max.

Units

Rated Power TA= -40 to 85, see derating graphs 1.0 W

Voltage Set Point Accuracy See tolerance envelope

Line regulation High Vin to low Vin 1.2 %/%

Load Regulation(10% load to rated load) 5V output types 15 %

Isolation test voltage tested for 1 second 3000 VDC

Resistance Viso= 1000VDC 1 G

GENERAL CHARACTERISTICS

Switching frequency All output types 120 kHz

TEMPER ATURE CHARACTRISTICS

Specification Conditions Min.

Typ.

Max.

Units

Specification All output types -40 85

Storage -50 130
