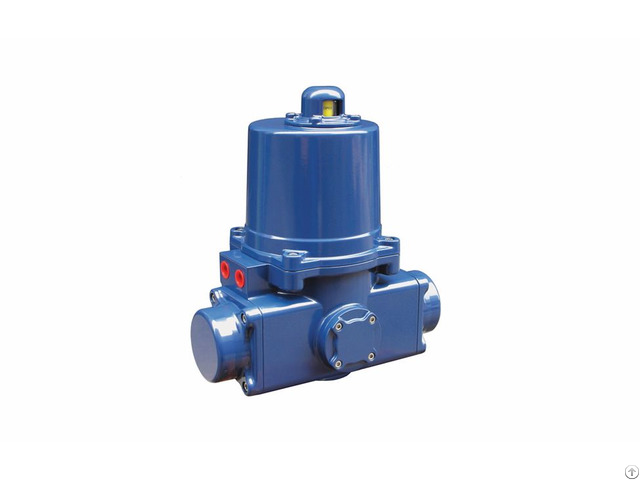

Spring Return Fail Safe Electric Actuator S500 - Taiwan

Specification:

Max Torque：50 N.

m/443 lb.

in

Standard Weight：27 kg/60 lb

W / Manual Override Weight：37 kg/82 lb

Mounting Flange(ISO 5211)：F07 Feature:

Standard Capability :

● Duty cycle rating：50% (Conform to IEC standard).

● Two-position control.

Ambient Temperature Range :

● Temperature：-30℃~+65� ��/-22℉~+149℉

● Humidity：30%~95% Enclosure :

● IP67, NEMA 4X：Water-proof and dust-proof enclosure.

● Material：Dry powder coating aluminum alloy.

Lubrication :

● Gear trains have been already lubricated sufficiently with anti-high temperature lubricant at the factory.

Position Indicator : ● All models have continuous mechanism position indicator on the top of actuator cover.

Various voltage

AC/DC 24V

AC 110/220V, 1-Phase

AC 220/380/440V, 3-Phase Conduit entrance

Standard：1/2"NPT

Optional：3/4"NPT, M20 Enclosure

Nylon coating

E.D. coating

Epoxy coating
