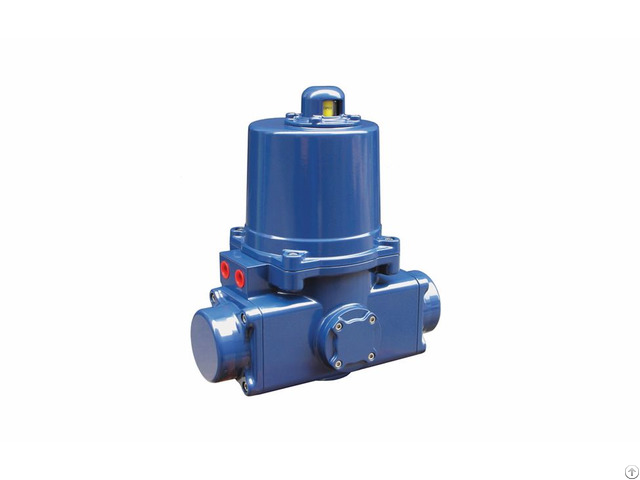

Spring Return Fail Safe Electric Actuator S1300 - Taiwan

Specification:

Max Torque：130 N.

m/1151 lb.

in

Standard Weight：57 kg/126 lb

W / Manual Override Weight：74 kg/163 lb

Mounting Flange(ISO 5211)：F10 Feature:

Standard Capability :

● Duty cycle rating：50% (Conform to IEC standard).

● Two-position control.

Ambient Temperature Range :

● Temperature：-30℃~+65� ��/-22℉~+149℉

● Humidity：30%~95% Enclosure :

● IP67, NEMA 4X：Water-proof and dust-proof enclosure.

● Material：Dry powder coating aluminum alloy.

Lubrication :

● Gear trains have been already lubricated sufficiently with anti-high temperature lubricant at the factory.

Position Indicator : ● All models have continuous mechanism position indicator on the top of actuator cover.

Various voltage

AC/DC 24V

AC 110/220V, 1-Phase

AC 220/380/440V, 3-Phase Conduit entrance

Standard：1/2"NPT

Optional：3/4"NPT, M20 Enclosure

Nylon coating

E.D. coating

Epoxy coating Certification:

● CE

● CSA

● RoHS

Company Contact:

• Posted By: Sun Yeh Electrical Ind. Co., Ltd.

• Phone: 886-4-26985666

• Address: No. 68, Lane 854, Sec. 1, Shatien Road., Dadu Dist., , Taichung City, Taiwan , Taiwan

• Email:

• Website: https://www.sunyeh.com

• Business Description: Sun Yeh Electrical Ind.

  Co., Ltd. was founded in 1986 - We have adhered to the highest principle of understanding customer's demand in depth, and continuing to develop Electric Actuator, Valve Actuator, Electric Valve Actuators, quarter-turn actuator, fail-safe spring return actuator and linear actuator.

  It has won the new type patent in Taiwan, U.S.A., Japan and China.

  Sun Yeh offers various products which are widely applied to the control on industry, water treatment, air conditioning, chemical engineering, food industry and so on.

  Quality Control

  Products of superior quality require sophisticated control systems using advanced inspection instruments and state-of-the-art facilities to ensure that every step in the production process is accurate and complete.

  In order to provide high quality prodcuts to customers, SUN YEH products are 100% inspection before shipping.

  Quality Certification

  Sun Yeh electric actuators are built on high quality; all products have been certified with approval of CE and CSA.

  As well as the ISO 9001, ISO 14001, OHSAS 18001, REACH, and RoHS certificates.

  "Perfect Solution" is the only goal for Sun Yeh.
