Si 61031 F Gigabit Rj45 Modular Jack - China

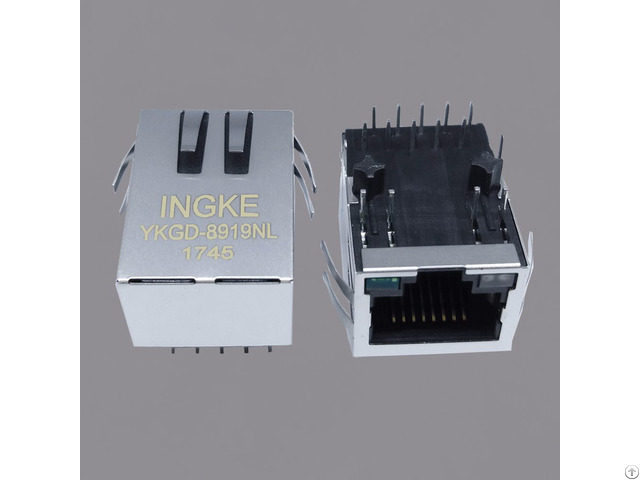

Ingke YKGD-8919NL 100% cross SI-61031-F Gigabit RJ45 modular jack

Part Number : SI-61031-F

Made in China: YKGD-8919NL

Original Manufacturer: Ingke Technology

Supply Ability: 5500K-PCS/Month

Packaging : Tray

Connector Type: RJ45

Number of Ports : 1

Number of Rows : 1

Applications : 10/100/1000 Base-T, AutoMDIX

Mounting Type : Through Hole

Orientation: 90°Angle(Right) Termination : Solder

LED Color: Green, Orange - Green

Number of Cores per Jack : 8 Shielding : Shielded, EMI Finger

Features: Board Guide

Tab Direction : Down

Contact Material : Phosphor Bronze

Contact Finish : Gold

Operating Temperature : -40℃~85℃

Contact Finish Thickness : 30µin (0.76µm)

Shield Material : Copper Alloy

Housing Material : Thermoplastic

Ingke Technology Mass production of the following models;

SI-60125-F SI-60126-F SI-60129-F SI-60132-F SI-60133-F SI-60134-F SI-60138-F SI-60141-F SI-60143-F SI-60002-F SI-60001-F SI-60062-F SI-60024-F SI-60118-F SI-61001-F SI-60182-F SI-60159-F SI-60136-F SI-60005-F SI-60128-F SI-60110-F SI-60022-F SI-60158-F SI-60217-F SI-60014-F SI-60015-F SI-60076-F SI-60123-F SI-61031-F SI-60063-F SI-60135-F SI-60069-F SI-60105-F SI-60091-F SI-60115-F SI-60190-F SI-60060-F SI-60082-F SI-60124-F SI-60006-F SI-60019-F SI-60029-F SI-60065-F SI-60066-F SI-60073-F SI-60074-F SI-60075-F SI-60078-F SI-60080-F SI-60081-F SI-60084-F SI-60085-F SI-60088-F SI-60089-F SI-60090-F SI-60092-F SI-60093-F SI-60095-F SI-60096-F SI-60097-F SI-60098-F SI-60101-F SI-60102-F SI-60103-F SI-60104-F SI-60107-F SI-60112-F SI-60113-F SI-60114-F SI-60116-F SI-60117-F SI-60119-F SI-60120-F SI-60121-F SI-60122-F SI-60082-F SI-60124-F SI-50151-F SI-50193-F SI-50080-F 0845-2D1T-S4 0845-2G1T-H6 SI-26001-F SI-30039-F SI-30113-F SI-30135-F SI-46008-F SI-46009-F SI-46012-F SI-46017-F SI-46019-F SI-50065-F SI-50076-F SI-50089-F SI-50096-F SI-50107-F SI-50109-F SI-50113-F SI-50124-F SI-50125-F SI-50139-F SI-50141-F SI-50156-F SI-50161-F SI-50164-F SI-50174-F SI-50179-F SI-50184-F SI-50186-F SI-50189-F SI-50194-F SI-50195-F SI-50199-F SI-50201-F SI-50205-F SI-50207-F SI-50210-F SI-50211-F SI-50212-F SI-50214-F SI-50219-F SI-50223-F SI-50224-F SI-50237-F SI-51014-F SI-51015-F SI-51021-F SI-52004-F SI-52005-F SI-52006-F SI-55003-F SI-55004-F SI-60006-F SI-60019-F SI-60029-F SI-60065-F SI-60066-F SI-60073-F SI-60074-F SI-60075-F SI-60078-F SI-60080-F SI-60081-F SI-60084-F SI-60085-F SI-60088-F SI-60089-F SI-60090-F SI-60092-F SI-60093-F
