Saw Grade Lithium Niobate Wafers - China

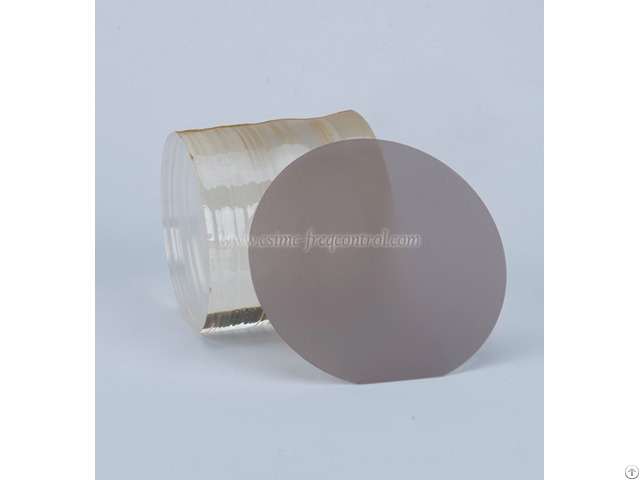

SAW Grade Lithium Niobate Wafers

Our abundance experience at growing and mass production for SAW grade Lithium Niobate crystal wafers.

We are equipped with advanced facilities at Crystal growing, wafer lapping, polishing and checking, all finished products are passed at Testing of curie Temp and QC inspection.

Our R&D is active at developing and researching from new material to finished products at all kinds of optical doped wafers & electronic components.

CQT produce the products: single piezo crystal, quartz blanks, Single Quartz Blanks, lithium niobate wafer and lithium tantanlate wafer.

We has been servicing for microelectronic manufacturers, defense related contractors, National laboratories, universities and scientists around the world since 1990

Product Parameters

Material LiNbO3 wafers (White or Black)

Curie Temp 1142±2.0℃

Cutting Angle X/Y/Z/Y36/Y41/Y64/Y128/et c

Diameter/size 3”/4”/6"LN wafer & 8"under R/D

Tol(±) <0.20 mm

Thickness 0.18 ~ 0.5mm or more

Primary Flat 22mm /32mm /42.5mm /57.5mm

LTV (5mmx5mm) <1µm

TTV <3µm

Bow -300.3 µ m <= 30 Scratch, Chipping None Defect No edge cracks, scratches, saw marks, stains

Packaging Qty/Wafer box 25pcs per box

CQT supply lithium niobate wafer, which include saw grade lithium niobate wafers and optical grade lithium niobate wafers, Our products have high quality and competitive prices.

We focus on innovation, cost-effectiveness, and superior quality for our customers.
