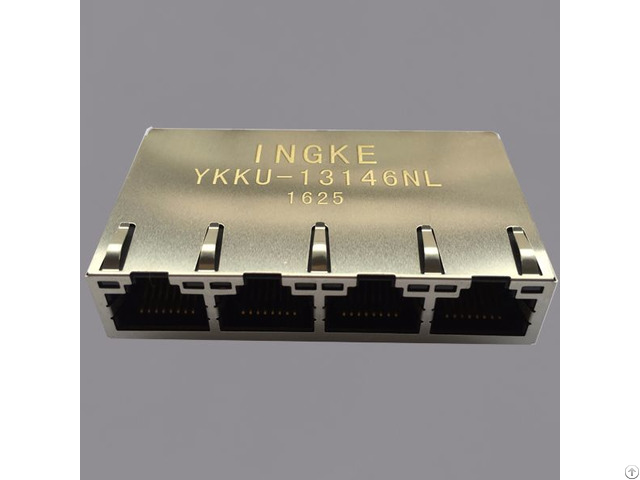

Rj45 Magnetic Jack Connector 0826 1x4t Gh F Ykku 13146nl 4 Port - China

Part Number : 0826-1X4T-GH-F Made in China: YKKU-13146NL Original Manufacturer: Ingke Technology Supply Ability: 5500K-PCS/Month Packaging : Tray Connector Type: RJ45 Number of Ports : 4 Number of Rows : 1 Applications : 10/100/1000 Base-T, AutoMDIX, Power over Ethernet+ (PoE+) Mounting Type : Through Hole Orientation: 90° Angle (Right) Termination : Solder LED Color: Green, Orange - Yellow Number of Cores per Jack : 8 Shielding : Shielded, EMI Finger Features: Board Guide Tab Direction : Up Contact Material : Copper Alloy Contact Finish : Gold Operating Temperature : -40℃~85℃ Contact Finish Thickness : 50µin (1.27µm) Shield Material : Copper Alloy Housing Material : Thermoplastic Ingke Technology Mass production of the following models;

SI-60080-F SI-60081-F SI-60084-F SI-60085-F SI-60088-F SI-60089-F SI-60090-F SI-60092-F SI-60093-F SI-60095-F SI-60096-F SI-60097-F SI-60098-F SI-60101-F SI-60102-F SI-60103-F SI-60104-F SI-60107-F SI-60112-F SI-60113-F SI-60114-F SI-60116-F SI-60117-F SI-60119-F SI-60120-F SI-60121-F SI-60122-F SI-60082-F SI-60124-F SI-50151-F SI-50193-F SI-50080-F 0845-2D1T-S4 0845-2G1T-H6 SI-26001-F SI-30039-F SI-30113-F SI-30135-F SI-46008-F SI-46009-F SI-46012-F SI-46017-F SI-46019-F SI-50065-F SI-50076-F SI-50089-F SI-50096-F SI-50107-F

Company Contact:

• Posted By: Ingke Technology Co.,Ltd

• Phone: 86 (755) 3283-5625

• Address: No.2106,Sanhe Building,Longgang Zone, Shenzhen , Guangdong , China

• Email:

• Website: http://ingketech.net

• Business Description: Ingke Technology specializes in producing 10/100/1000/2.5G/5G/10G Base-T Integrated RJ45 Jacks, since its establishment1993, with technology as dependence and the market as direction, we have developed to be a competitive high-tech enterprise and a leading manufacturer of connectors.

  Partnered with the global leaders in these markets, we continue to develop new products to enable high-speed communication.

  Now we have passed the ISO14001 Environment Management System certification and our parts are all ROHS, CE, UL and SGS parts.

  Our products are widely used in telecommunications, data communications, consumer electronic , computer, industrialand medical markets, such as HUB, SWITCH, IP Phone, Set-Top Box, Smart Home, Embedded System, Networking Camera etc.

  Our Products:

  - a60 113 331p432 edac 1 port rj45 magnetic jack connector

  - we 7499111446 gigabit magnetic rj45 connectors

  - gigabit 2250022 4 magnetic rj45 jacks

  - trp 6605444 6 gigabit magnetic rj45 jacks

  - si 61031 f gigabit rj45 modular jack
