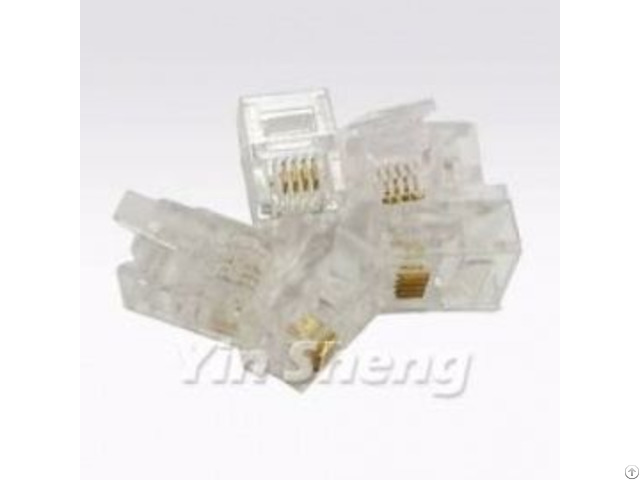

Rj11 12 Telephone Connector - Taiwan

YS-202 MP6P6C/4C/2C The company's crystal reference FCC 68 the first series of products designed in line with TIA-968A.

's Standard specifications for 24 ~ 28 AWG multi-core line and single-core line.

1 - Electrical Test： A.

Dielectric Withstanding Voltage test 1000V/DC B.

Insulation Resistance: >500MΩ.

C.

Contact Resistance: <20mΩ

2 - Gold Plate Inspection： Per MIL-G-45204C TYPE II (99% pure gold minimum) Grade C+(KNOOP HARDNESS RANGE 130~250) Class 1(50 microinches minimum thickness)

3 - The Gold-plated Testing Instruments： FISCHER.

X-RAY 4 - Mechanical： A.

Cable-to-plug tensile strength-20LBs(89N) min.

B.

Durability: 2000 mating cycles.

5 - Material & Finish： A.

Housing Material: Polycarbonate(PC .

)(UL No.

E50075) 94V-0(For UL 1863 DUXR2) 94V-2(For UL 498 RTRT2) B.

Contact blade:

　 a.

High strength copper alloy [JIS C5191R-H(PBR-2)]

　 b.

100 microinches nickel under plated & Gold selected.

。

6 - Operating Temperature：-40。C~+12 5。C
