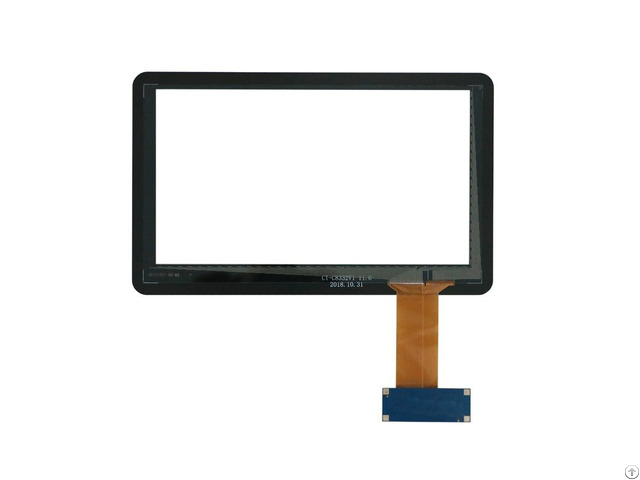

11.6 Inch Plug-and-Play Capacitive Touch Screen Overlay

11.6 inch projected capactive touch screen overlays of ours are all glass-on-glass structure, 6H surface hardness strengthened cover glass optically bonded on multi-touch ITO sensor glass.

They are widescreen with aspect ratio 16: 9 - We provide COB type and COF type for option.

The COF type supports USB inerface and IIC interface.

The COB type supports USB, IIC and RS232 - For USB interface projected capacitive touch screen, it is plug-and-play on Windows, Android and Linux.

Which one are you interested in? Just contact us to discuss further.

Model No.

Viewing Area Outline Dimension Type Interface Touch Points

YS1168846V1 257.32x145.18mm 289.4x178.9mm COB USB/IIC 10

YS1169025V1 257.31x145.4mm 279.5x177.09mm COF USB/IIC 10

YS1168332V1 257x145mm 296x184.9mm COB USB/IIC/RS232 10

YS1168591V1 256.82x144.68mm 268.5x158.7mm COB USB/IIC 10

Company Contact:

• Posted By: Dongguan Yunshang Electronic Technology Co., Ltd.

• Phone: 18802643295

• Address: Room 301, building 8, No.74, Chang'an Zhen'an East Road, Chang'an Town, Dongguan , Guangdong , China

• Email:

• Website: https://www.cloudtoptouch.com/

• Business Description: WHO WE ARE

  Established in the year of 2015, Dongguan Yunshang Electronic Technology Co., Ltd., well known as CloudTop, is located in Dongguan, China.

  We are a manufacturer with custom ability for touch display modules.

  We are equipped with advanced manufacturing machines for touch display modules in more than 2500 square meters clean rooms.

  WHAT WE DO

  CloudTop is focusing on manufacturing and providing more competitive touch screen solutions with size from 3.5 inches to 75 inches, which are widely used on industrial equipment, medical devices, beauty industry, smart home appliances, vending machines, entertainment equipment, POS terminals and etc.

  Our main products and services are as below:

  1 - Touch Display Module (TFT-LCD module bonded with touch screen);

  2 - Projected Capacitive (PCAP) Touch Screen;

  3 - TFT-LCD Module

  SOME ADVANTAGES

  ITO touch sensors are designed and produced in our self-owned factory.

  It can support multi-touch, gloved-hand touch, touch with water on the surface, passive pen and active pen as requested.

  Front glass’ surface hardness is 6H and its thickness can go up to 10mm.

  For better visual effect, there is anti-glare coating and anti-reflective coating for option.

  Logo, text, shape, hole, color, size can be customized.

  TFT-LCD modules are original new from BOE, TIANMA, AUO, INNOLUX and etc.

  We recommend TFT-LCD modules as the usage and working environment.

  High brightness and stretched TFT-LCD modules can be customized.

  For bonding TFT-LCD modules with PCAP touch screen, we provide optical bonding and tape-bonding technologies.

  Tape bonding is more cost effective with adhesive tape around the bezel of TFT-LCD and PCAP touchscreen sensor.

  There is an air-gap between them, hence, it is also called air-gap bonding.

  Optical bonding is laminating PCAP touchscreen completely to TFT-LCD, which has much less light-reflection caused by the tape bonding air-gap.
