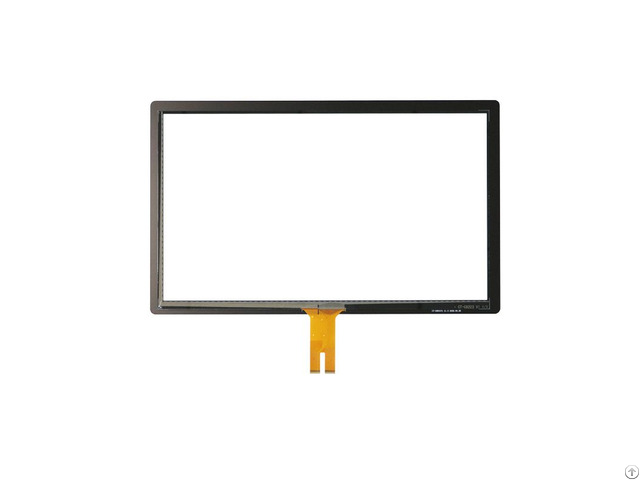

21.5 Inch Multi-touch PCAP Touch Screen
YS2158831V1 is a PCAP (projected capacitive) touch screen, powered by a 5V touch controller with USB interface from ILITEK, supporting multi-touch up to 10 points, compatible with Windows, Android, Linux, Harmony OS and Mac OS.
It's plug-and-play with USB interface.
RS232 and IIC interfaces are for option.
Structure: GG (glass-on-glass), ITO technology PCAP touchscreen sensor glass optically bonded with strengthened front glass.
The cover glass is 2mm thickness and it is chemically strengthened.
The ITO sensor glass is 0.7mm with etched ITO patterns and silk ink traces.
Sensor glass is for realizing the touch function and the cover glass is for protecting the sensor glass.
Also it helps to assmeble it to the enclosure, as the cover glass is about 10mm larger each side than the sensor glass.
Type: COB (chip on board), touch IC from ILITEK, USB/RS232/IIC interface connectors are soldered on the controller board.
USB interface is plug and play, compatible with ordinary operating systems.
RS232 needs serial driver and it supports long-distance data communication, up to 15 meters.
IIC interface also needs touchscreen driver.
Surface Hardness: 6H
Transmittance: >85%
Operating Temperature: -10ºC ~ 60ºC, <85%HR
Storage Temperature: -20ºC ~ 70ºC, <85%HR
Company Contact:
- Phone: 18802643295
- Address: Room 301, building 8, No.74, Chang'an Zhen'an East Road, Chang'an Town, Dongguan , Guangdong , China
- Email:
- Website: https://www.cloudtoptouch.com/
Published date: March 26, 2023
- Business Description: WHO WE ARE
Established in the year of 2015, Dongguan Yunshang Electronic Technology Co., Ltd., well known as CloudTop, is located in Dongguan, China.
We are a manufacturer with custom ability for touch display modules.
We are equipped with advanced manufacturing machines for touch display modules in more than 2500 square meters clean rooms.
WHAT WE DO
CloudTop is focusing on manufacturing and providing more competitive touch screen solutions with size from 3.5 inches to 75 inches, which are widely used on industrial equipment, medical devices, beauty industry, smart home appliances, vending machines, entertainment equipment, POS terminals and etc.
Our main products and services are as below:
1 - Touch Display Module (TFT-LCD module bonded with touch screen);
2 - Projected Capacitive (PCAP) Touch Screen;
3 - TFT-LCD Module
SOME ADVANTAGES
ITO touch sensors are designed and produced in our self-owned factory.
It can support multi-touch, gloved-hand touch, touch with water on the surface, passive pen and active pen as requested.
Front glass’ surface hardness is 6H and its thickness can go up to 10mm.
For better visual effect, there is anti-glare coating and anti-reflective coating for option.
Logo, text, shape, hole, color, size can be customized.
TFT-LCD modules are original new from BOE, TIANMA, AUO, INNOLUX and etc.
We recommend TFT-LCD modules as the usage and working environment.
High brightness and stretched TFT-LCD modules can be customized.
For bonding TFT-LCD modules with PCAP touch screen, we provide optical bonding and tape-bonding technologies.
Tape bonding is more cost effective with adhesive tape around the bezel of TFT-LCD and PCAP touchscreen sensor.
There is an air-gap between them, hence, it is also called air-gap bonding.
Optical bonding is laminating PCAP touchscreen completely to TFT-LCD, which has much less light-reflection caused by the tape bonding air-gap.
